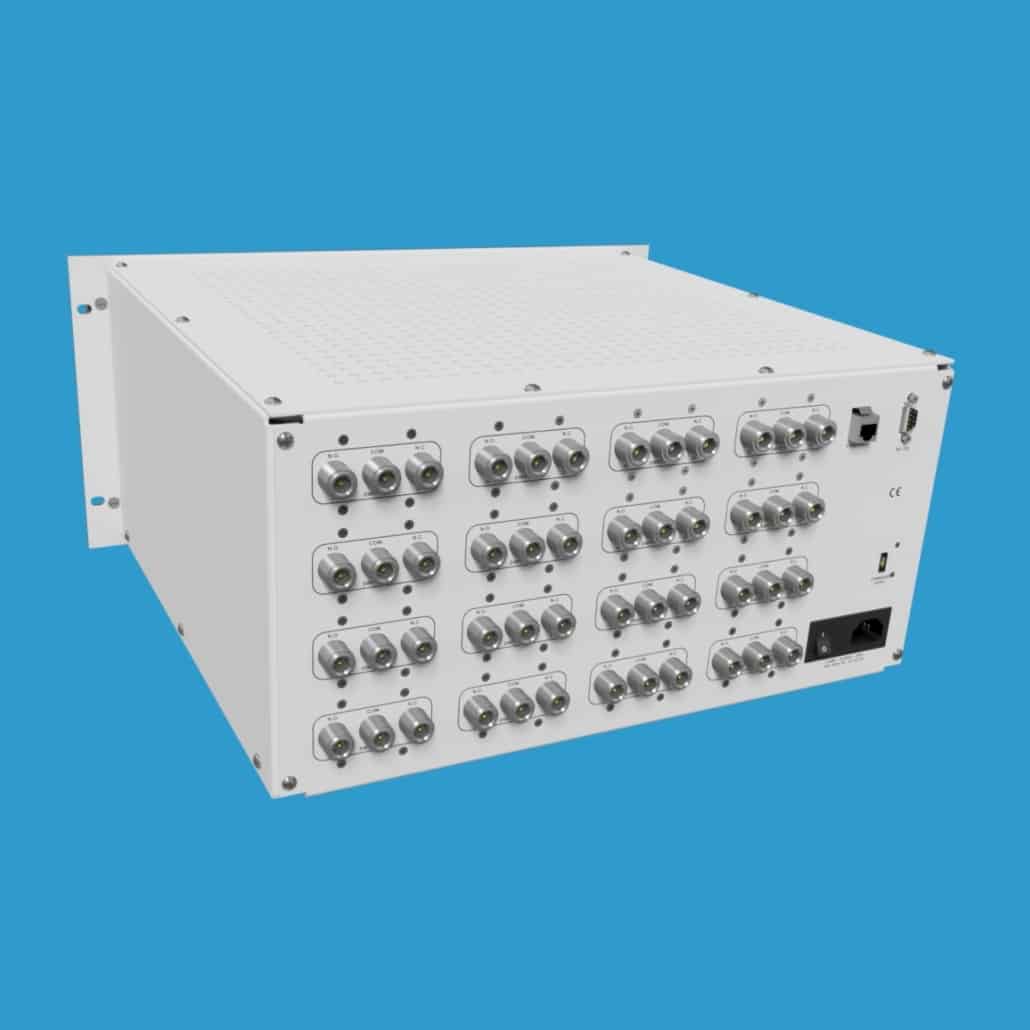

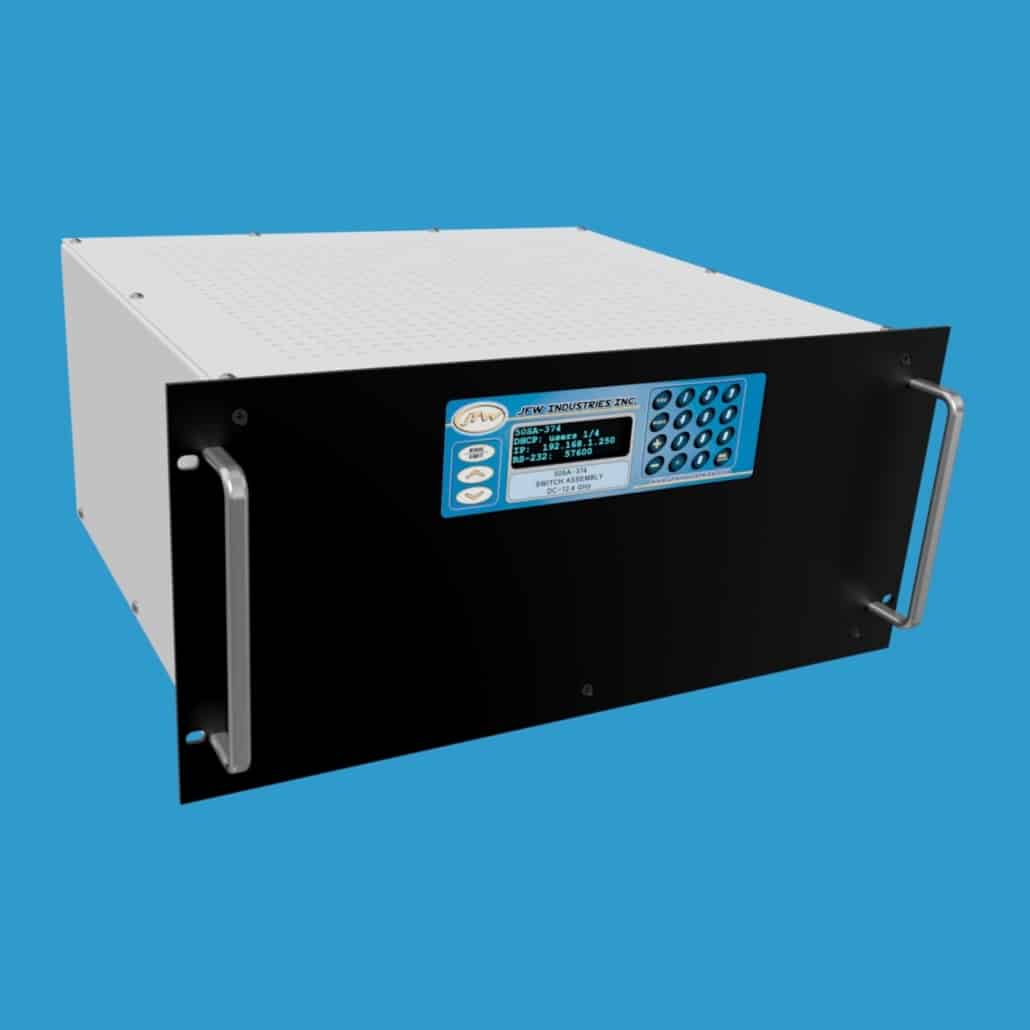

Assembly with 16 RF Switches 1P2T DC-12.4 GHz | 50SA-374 N

JFW Model #: 50SA-374
Type: RF switch assembly
Impedance: 50 Ohm
Number of Switches: 16 Switches
RF Switch Type: 1P2T Reflective
Frequency Range: DC-12.4 GHz
RF Input Power: 150 Watts @ 4 GHz
Control: Manual, Ethernet, RS-232
RF Connectors: N female
Documentation: Data Sheet | Drawing
