JFW Model #: 50S-1873
Impedance: 50 Ohms
Switch Configuration: 1P2T
Switch Type: Reflective
Frequency Start: 800 MHz
Frequency Stop: 2200 MHz
Switching Speed: 12 uS
RF Input Power: 15 Watts (cold switch) 15 Watts (hot switch)
Isolation: 45 dB
Control Logic: TTL
DC Supply: +5 Vdc, +28 Vdc
Documentation: Data Sheet | Drawing

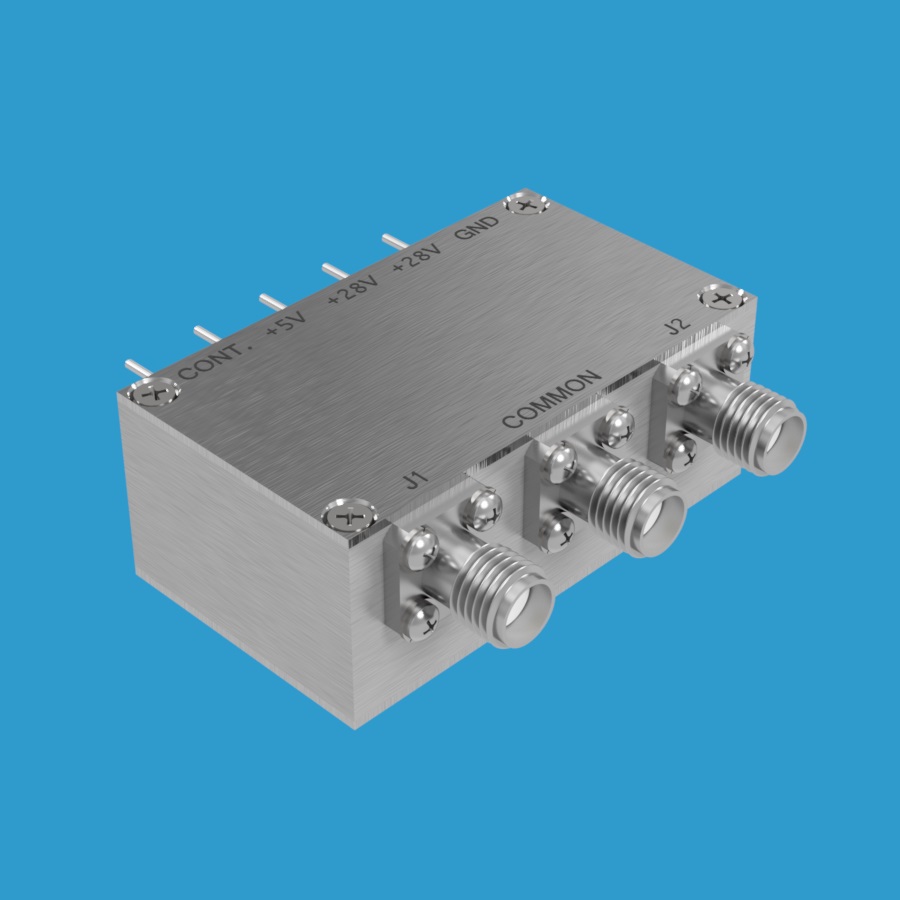

Model 50S-1873 is a 50 Ohm solid-state reflective 1P2T RF switch operating 800-2200 MHz. The RF power rating for this 1P2T is 15 Watts (cold switch) and 15 Watts (hot switch). The unused port is reflective. It is available with 50 Ohm SMA female RF connectors. This 1P2T has one control line. The control line is activated with TTL signal levels.
