Description

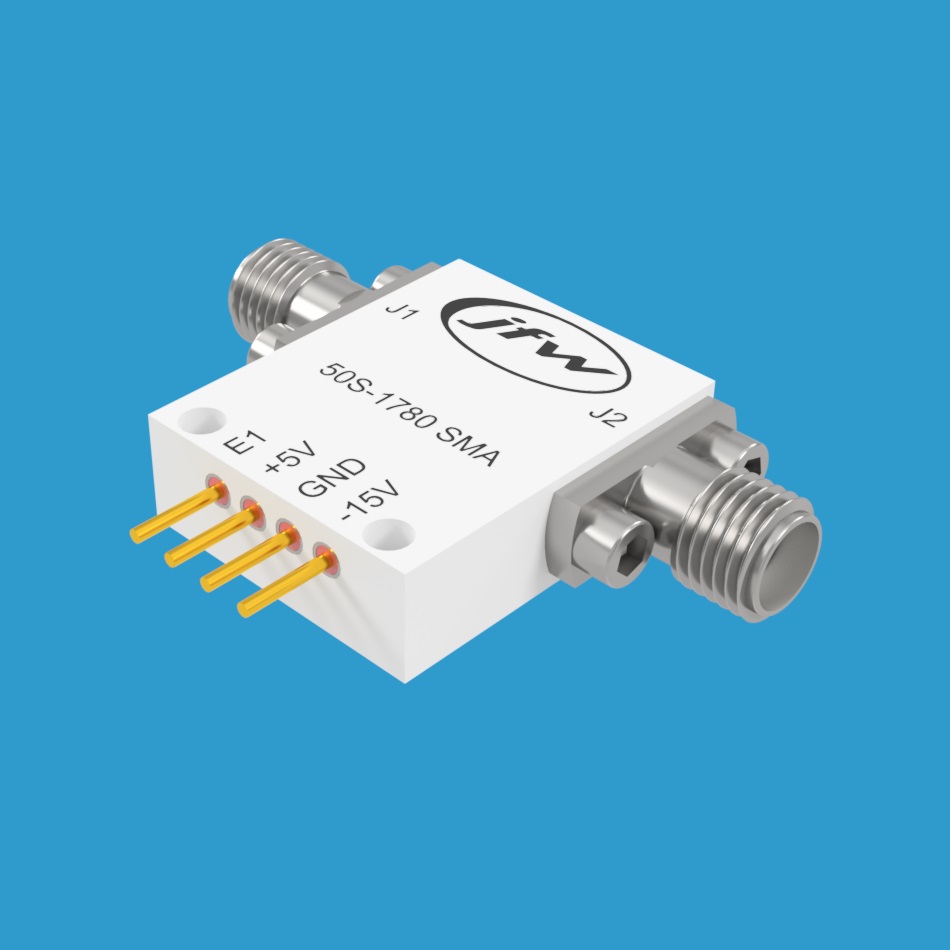

Model 50S-1780 is a 50 Ohm solid-state 1P1T RF switch operating 500 MHz to 18 GHz rated at +27dBm of RF power. This RF switch is absorptive type (i.e. self-terminating). Port J2 will self-terminate 50 Ohm impedance when the 1P1T is in the OFF setting. Port J1 will be reflective when switch is in OFF setting. It is available with 50 Ohm SMA female RF connectors. The 1P1T RF switch has one control line. The control line is activated with TTL signal levels.
