Description

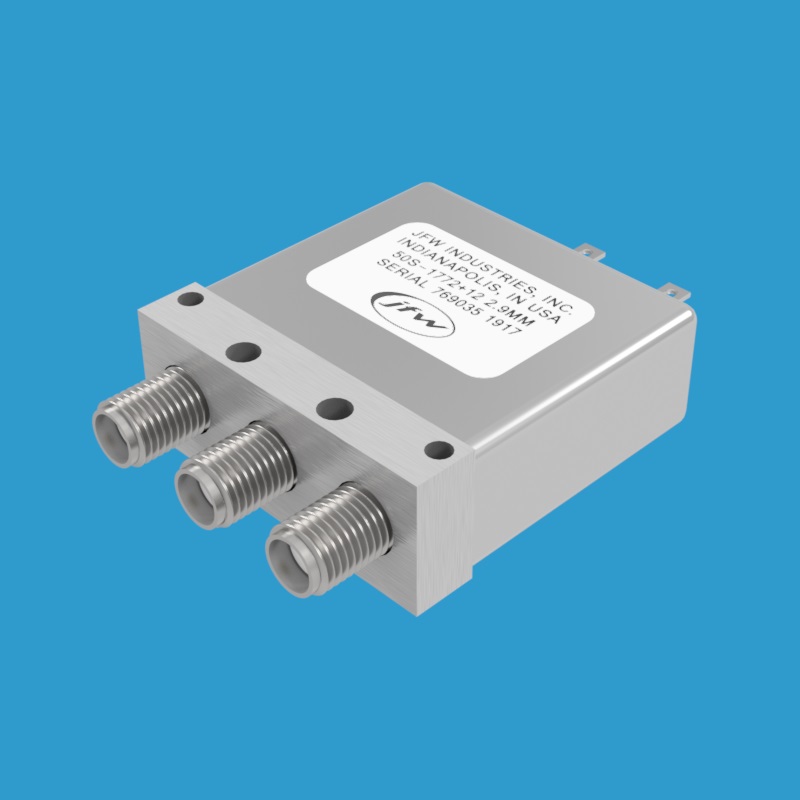

Model 50S-1772+XX is a 50 Ohm electro-mechanical 1P2T RF switch operating DC-40 GHz with 2.9mm female RF connectors. This model is failsafe and the unused port is reflective. The failsafe path is COM to NC. This 1P2T has three RF ports: COM (common port), NC (normally closed port), NO (normally open port). This 1P2T RF switch has one control line. The control line is activated with +XX Vdc signal levels (i.e. +12Vdc, +24Vdc).
