Description

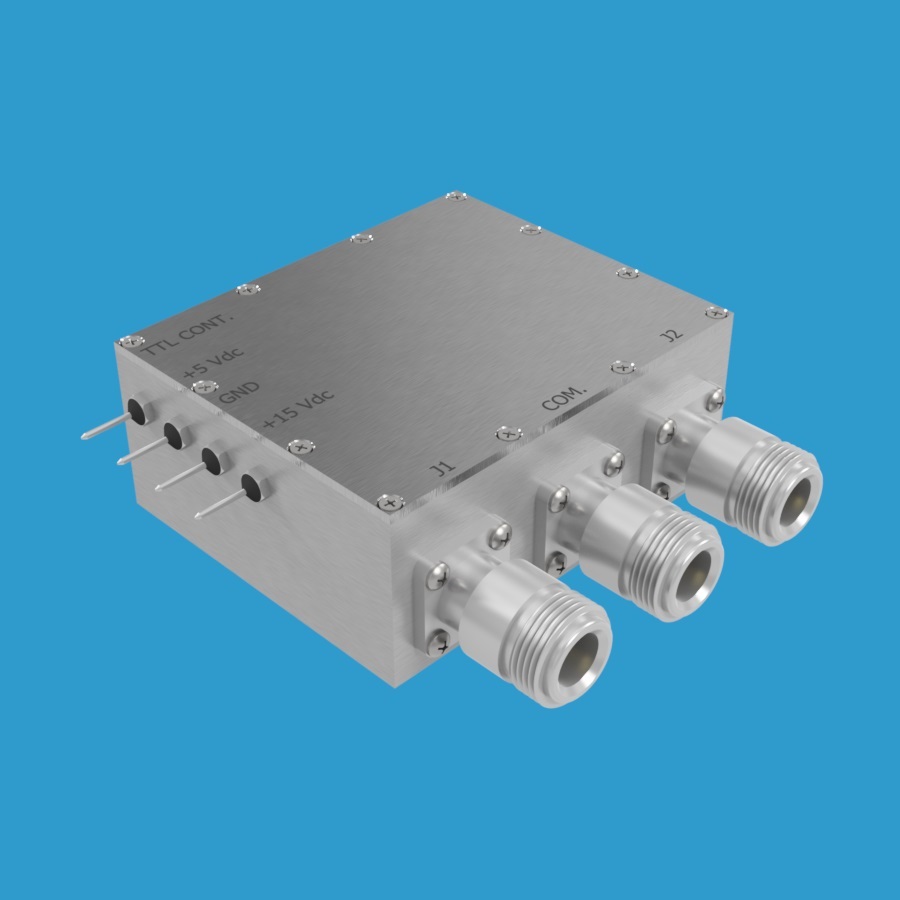

Model 50S-1559 is a 50 Ohm solid-state reflective 1P2T RF switch operating 20-1000 MHz. The RF power rating for this 1P2T is 150 Watts (cold switch) and 50 Watts (hot switch). The unused port is reflective. It is available with 50 Ohm RF connectors: BNC, SMA, TNC or N female. This 1P2T has one control line. The control line is activated with TTL signal levels.
