Description

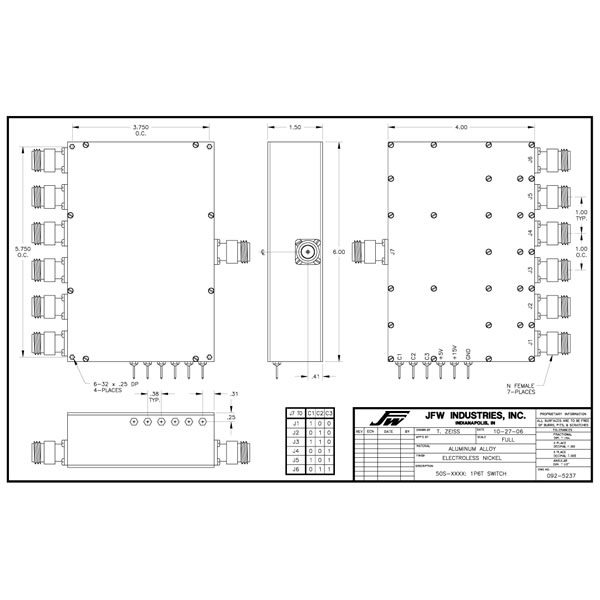

Model 50S-1524 is a 50 Ohm solid-state reflective 1P6T RF switch operating 100-500 MHz. The RF power rating for this 1P6T is 100 Watts (cold switch) and 20 Watts (hot switch). The unused ports are reflective. It is available with 50 Ohm RF connectors: SMA, TNC, or N female. This 1P6T has three BCD control lines. Each control line is activated with TTL signal levels.
