Description

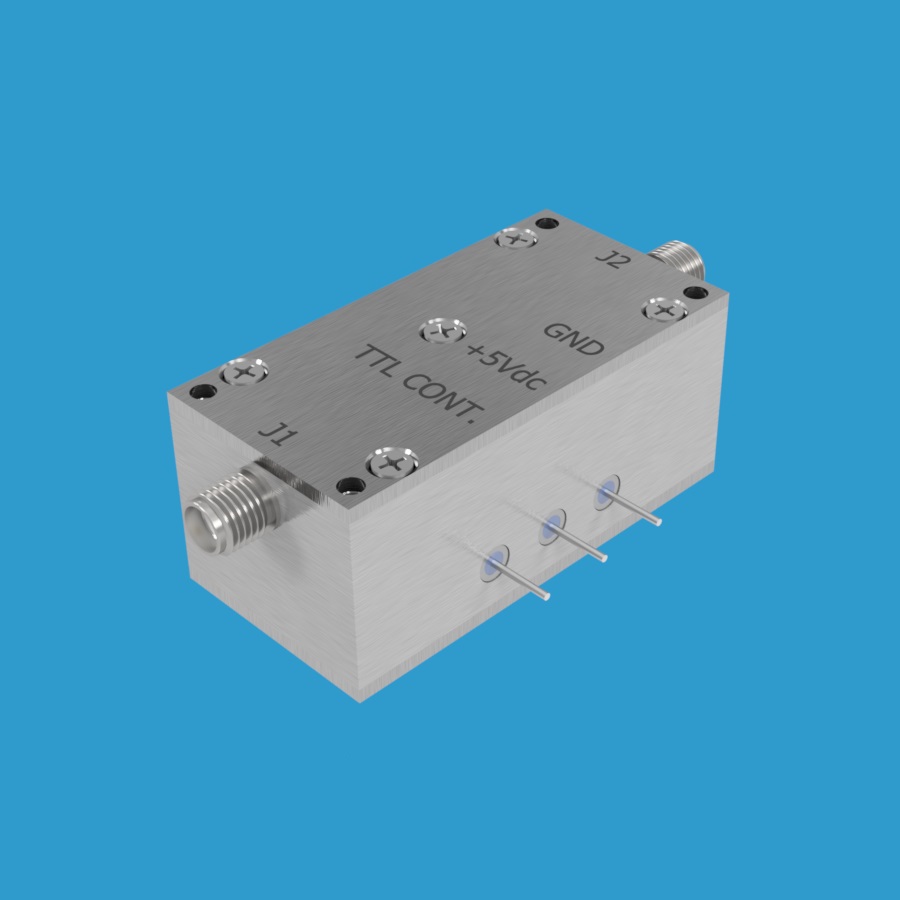

Model 50S-1337 is a 50 Ohm solid-state 1P1T RF switch operating 800-3000 MHz rated at +20dBm of RF power. This RF switch is absorptive type (i.e. self-terminating). Both ports will set to 50 Ohm impedance when the 1P1T is in the OFF setting. It is available with 50 Ohm SMA female RF connectors. The 1P1T RF switch has one control line. The control line is activated with TTL signal levels.
