Description

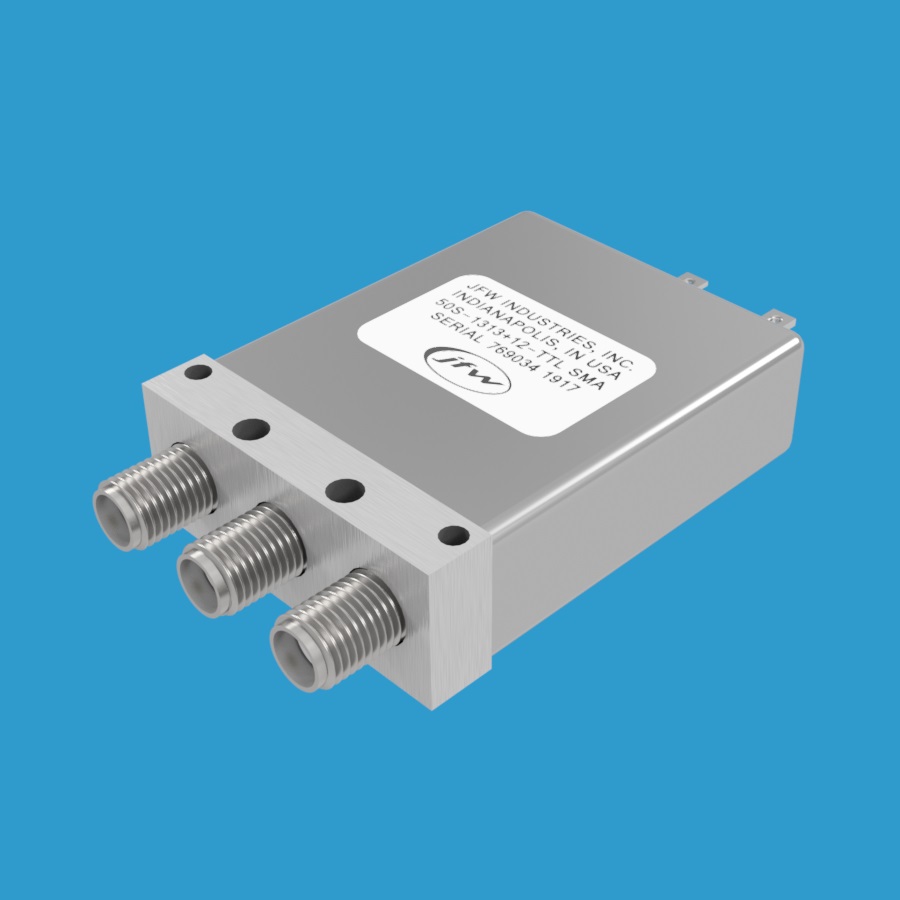

Model 50S-1313+XX-TTL is a TTL controlled 50 Ohm electro-mechanical 1P2T RF switch operating DC-18 GHz with SMA female RF connectors. This model is failsafe and the unused port is reflective. The failsafe path is COM to NC. This 1P2T has three RF ports: COM (common port), NC (normally closed port), NO (normally open port). This 1P2T RF switch has one control line. The control line is activated with TTL signal levels.
