Description

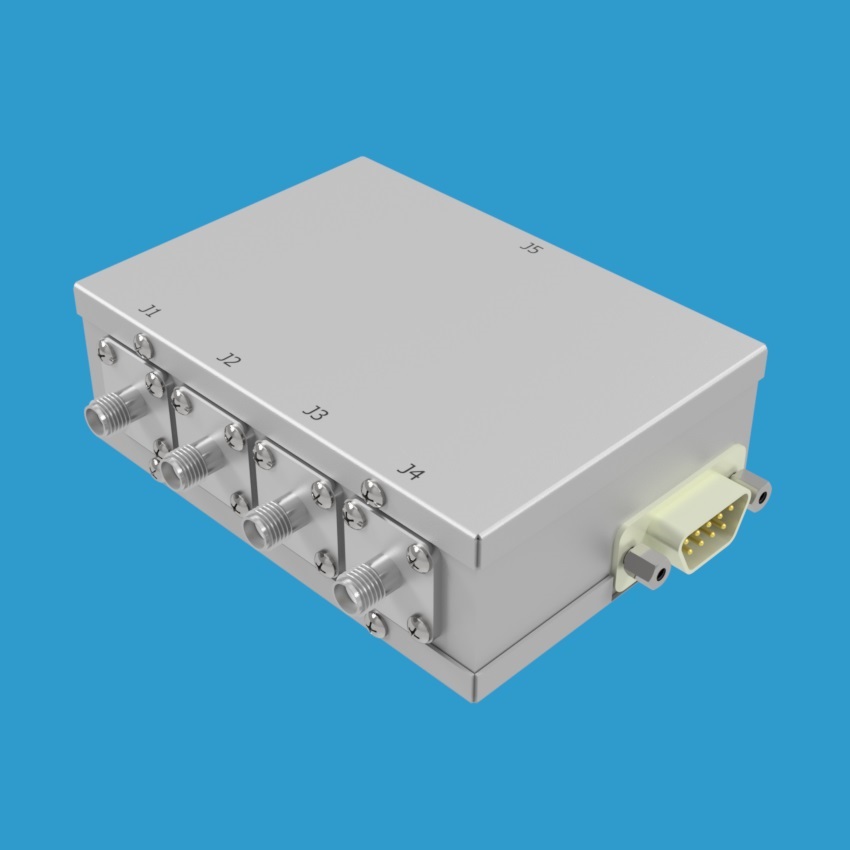

Model 50S-1035 is a 50 Ohm solid-state 1P4T RF switch operating 20-4300 MHz. It is rated for +20dBm of RF input power at 20 MHz and +30dBm (i.e. 1 Watt) at 100 MHz and above. This RF switch is reflective type. The unused ports will set to a reflective setting. It is available with 50 Ohm SMA female RF connectors. The 1P4T RF switch has four control lines. Each control line is activated with TTL signal levels.
