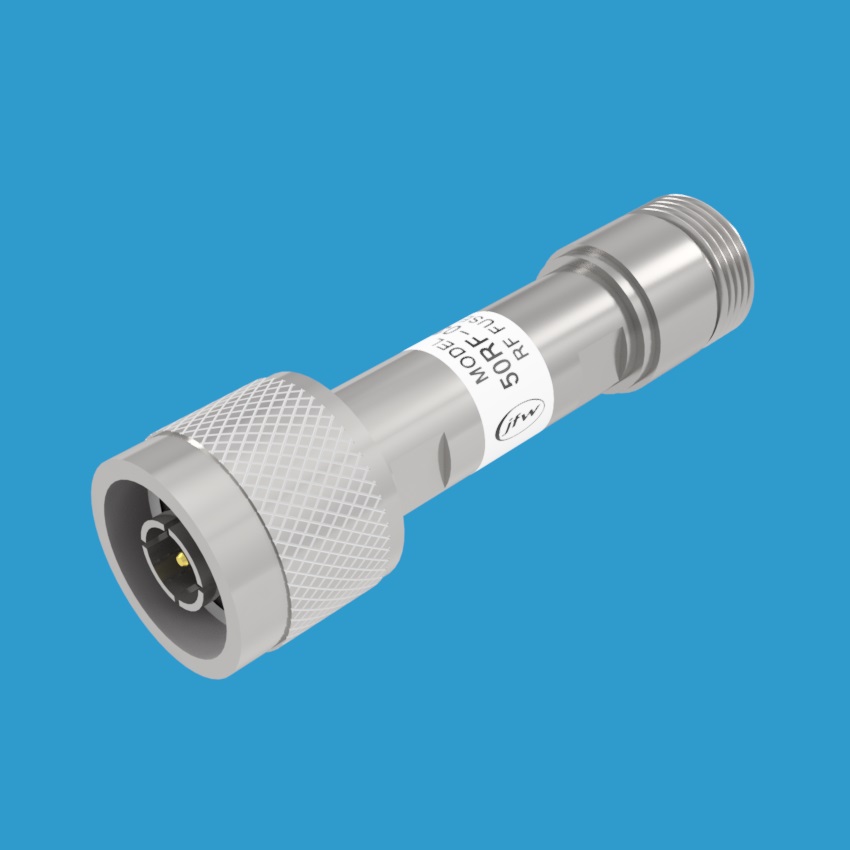

RF Fuse Holder DC-1 GHz | 50RF-037 N

JFW Model #: 50RF-037
Impedance: 50 Ohm
Frequency Range: DC-1000 MHz
RF Connectors: N male/female

Fuse Rating:

• At 100% of rated current
  • 4 hours minimum
• At 200% of rated current
  • 1/16 A 1 sec max (0.015 sec typical)
  • 1/8 A 1 sec max (0.04 sec typical)
  • 1/4 A 1 sec max (0.1 sec typical)
  • 3/8 A 1 sec max (0.1 sec typical)

Documentation: Data Sheet | Drawing
