Description

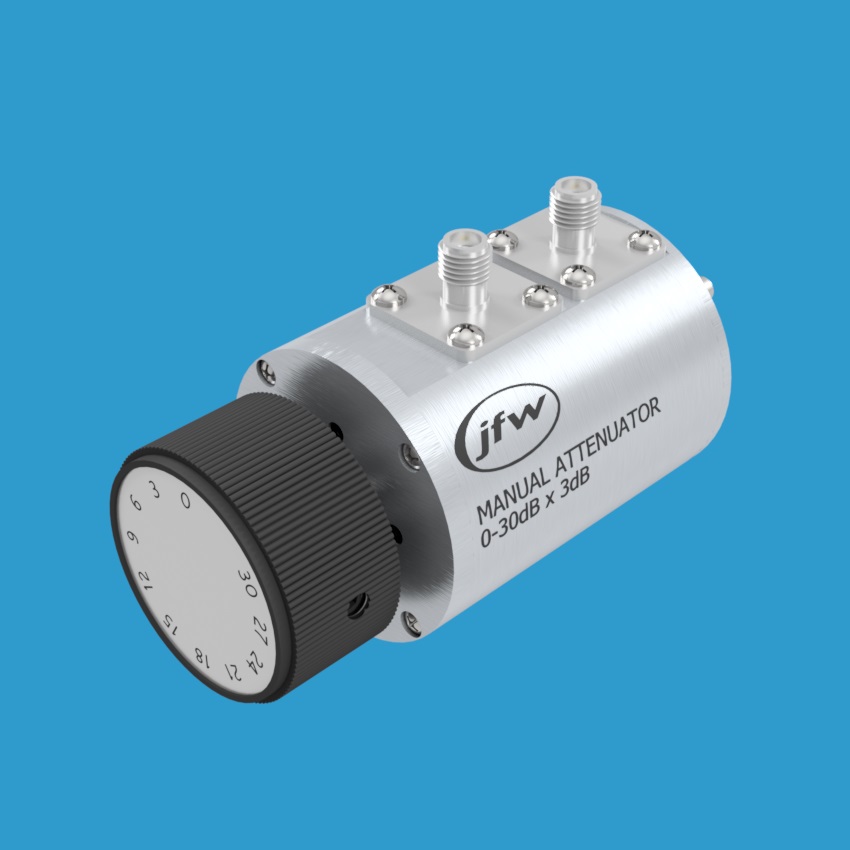

Model 50R-388 is a 50 Ohm manual step attenuator with attenuation range 0 to 30dB by 3dB steps. It operates DC-2700 MHz and is rated for 2 Watts average RF power. It is a single rotary attenuator (i.e. one manual knob). It is available with 50 Ohm coaxial RF connectors: BNC, SMA or TNC. The attenuator has four mounting holes in the front plate to allow for panel mounting.
