Description

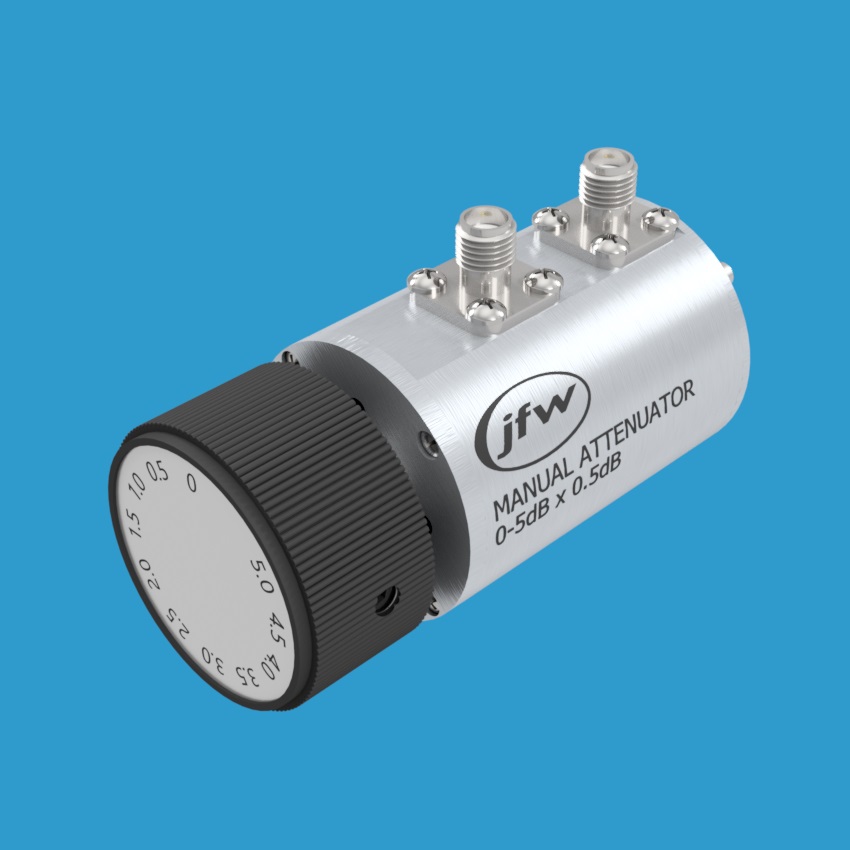

Model 50R-349 is a 50 Ohm manual step attenuator with attenuation range 0 to 5dB by 0.5dB steps. It operates DC-2500 MHz and is rated for 2 Watts average RF power. It is a single rotary attenuator (i.e. one manual knob). It is available with 50 Ohm SMA female connectors. The attenuator has four 6-32 threaded mounting holes in the front plate to allow for panel mounting.
