Description

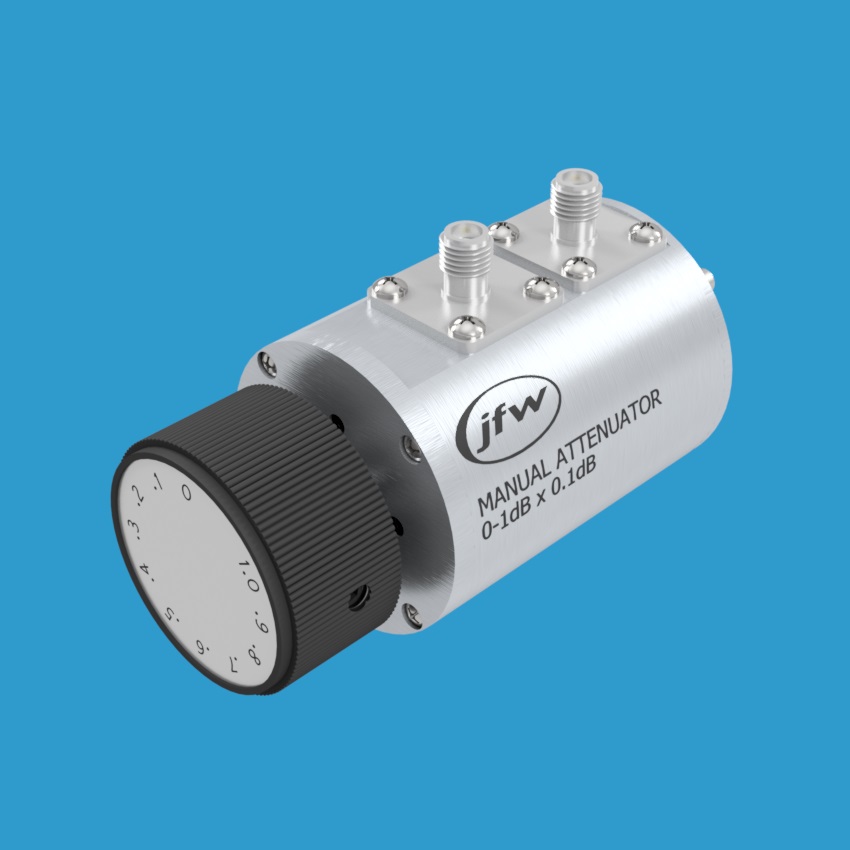

Model 50R-215 is a 50 Ohm manual step attenuator with attenuation range 0 to 1dB by 0.1dB steps. It operates DC-2200 MHz and is rated for 2 Watts average RF power. It is a single rotary attenuator (i.e. one manual knob). It is available with 50 Ohm coaxial RF connectors: BNC, SMA, or TNC. The attenuator has four mounting holes in the front plate to allow for panel mounting.
