JFW Model #: 50R-029
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 70 dB
dB Step: 10 dB
Frequency Range: DC-2200 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC, 4.1/9.5
Documentation: Data Sheet | Drawing SMA | Drawing BNC | Drawing N | Knob/Mounting

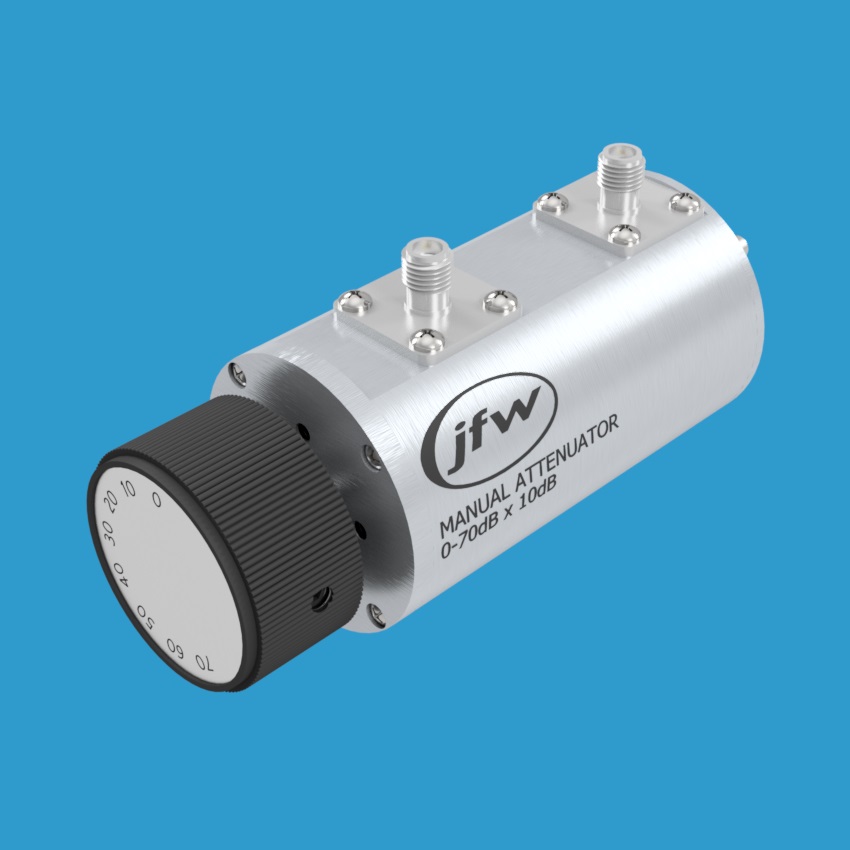

Model 50R-029 is a 50 Ohm manual step attenuator with attenuation range 0 to 70dB by 10dB steps. It operates DC-2200 MHz and is rated for 2 Watts average RF power. It is a single rotary attenuator (i.e. one manual knob). It is available with 50 Ohm coaxial RF connectors: BNC, N, SMA, TNC or 4.1/9.5. The attenuator has four mounting holes in the front plate to allow for panel mounting.
| Weight | N/A |
|---|---|
| Connector Type | 4.1/9.5 Mini-DIN Female, BNC Female, N Female, SMA Female, TNC Female |
