JFW Model #: 50R-019
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 10 dB
dB Step: 1 dB
Frequency Range: DC-2200 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, RPT, SMA, TNC
Documentation: Data Sheet | Drawing (BNC) | Drawing (SMA) | Drawing (TNC) | Knob/Mounting

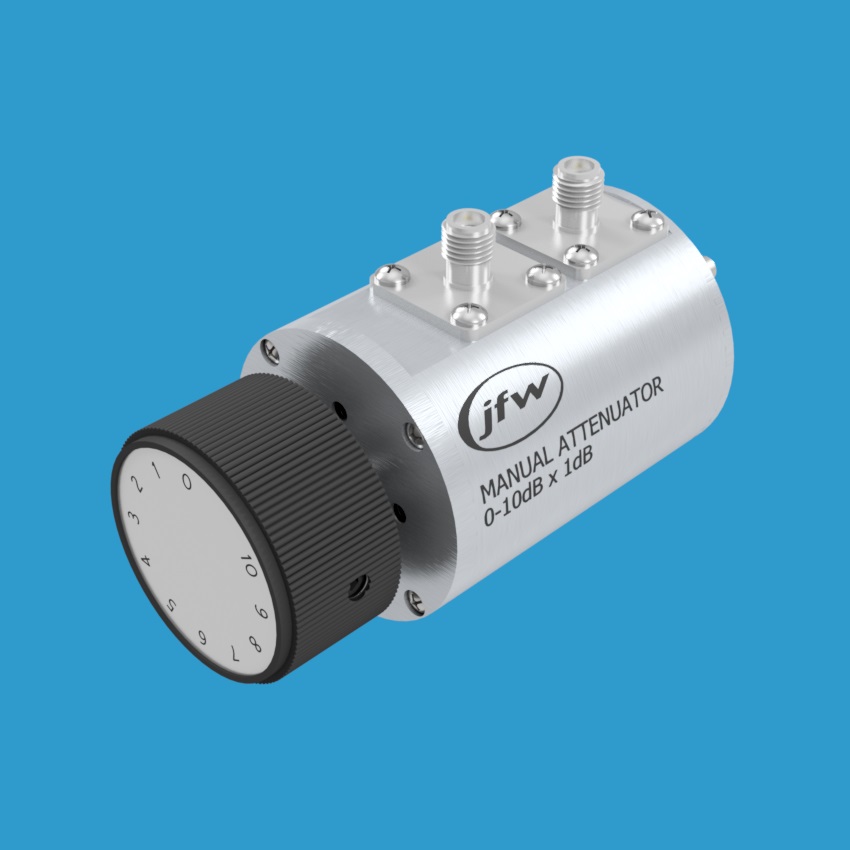

Model 50R-019 is a 50 Ohm manual step attenuator with attenuation range 0 to 10dB by 1dB steps. It operates DC-2200 MHz and is rated for 2 Watts average RF power. It is a single rotary attenuator (i.e. one manual knob). It is available with 50 Ohm coaxial RF connectors: BNC, SMA, TNC or Reverse Polarity TNC. The attenuator has four mounting holes in the front plate to allow for panel mounting.
| Weight | N/A |
|---|---|
| Connector Type | BNC Female, BNC/SMA Female, N/SMA Female, RPT Female, SMA Female, TNC Female, TNC/SMA Female |
