JFW Model #: 50PDA-150
Impedance: 50 Ohms
Configuration: Modular
50PDM-001-X modules: 698-3000 MHz
50PDM-002-X modules: 2000-6000 MHz
50PMA-003-X modules: 500-6000 MHz
RF Input Power: 5 Watts
RF Connectors: SMA
Rack Mounting Type: 19 in rack mount
Documentation: Data Sheet | Drawing

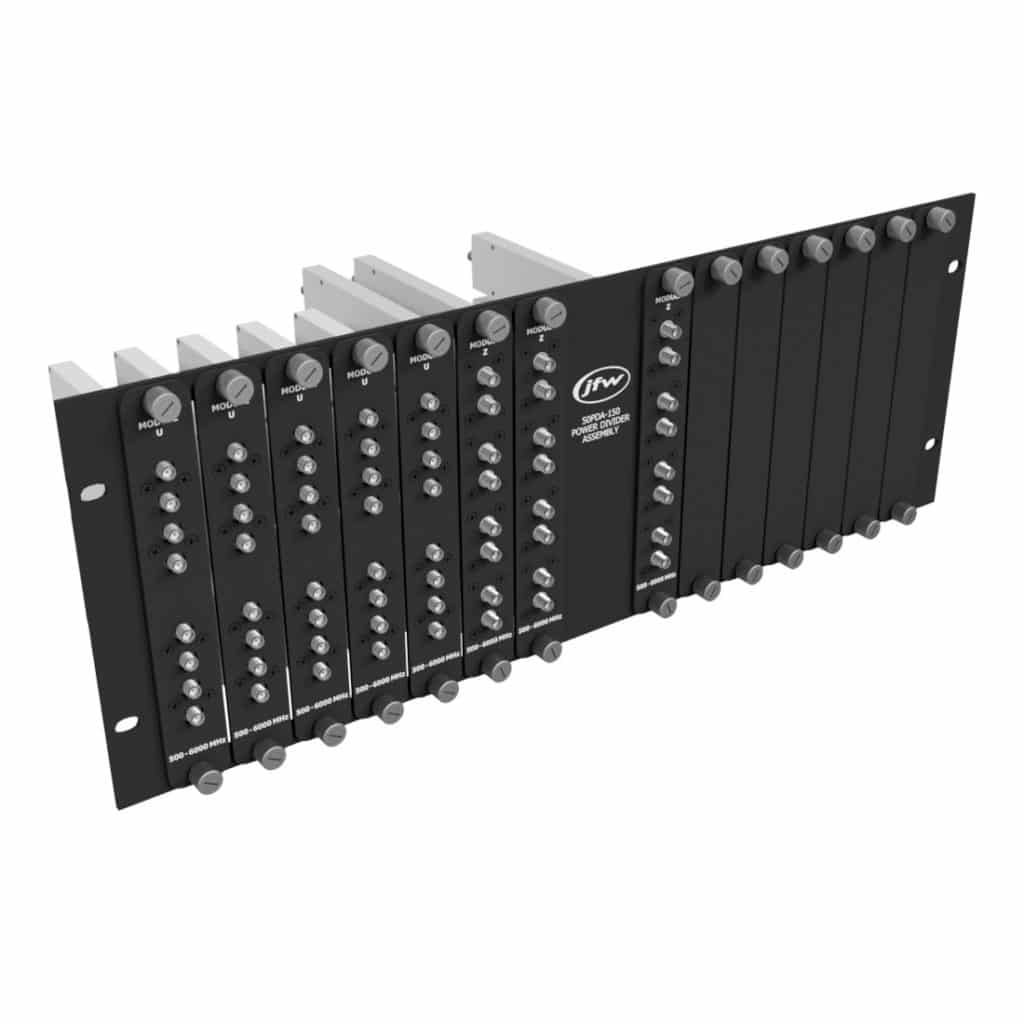

The 50PDA-150 is a modular power divider assembly. It can hold up to 14 power divider modules. The modules can be of varying configuration, frequency ranges and connector types.
50PDM-001-X modules: 698-3000 MHz
50PDM-002-X modules: 2000-6000 MHz
50PMA-003-X modules: 500-6000 MHz
Example Model Numbers:
50PDA-150-A14
Qty-14 of A modules
50PDA-150-A1-B2-C5
Qty-1 of A module, Qty-2 of B modules, Qty-5 of C modules
| Module | A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z |
|---|---|
| Connector Type |
Manual Attenuator DC-1GHz 0-1dB x 0.1dB | 50R-028
