Description

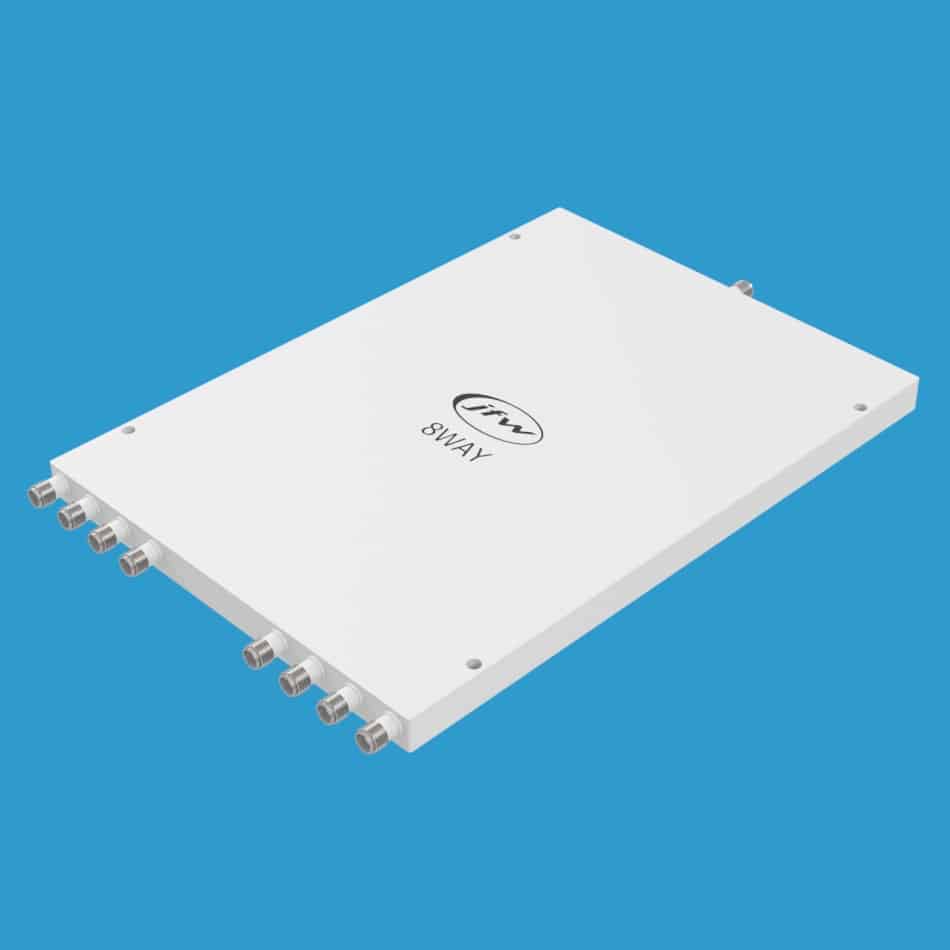

Model 50PD-848 SMA is a 50 Ohm reactive 8-Way power divider/combiner that operates 350-6000 MHz. It uses a reactive Wilkinson splitter design which is ideal when the application is to fan-in or fan-out RF signals with minimum loss. It is only available with SMA female coaxial RF connectors. It has one divider port and eight combiner ports. Any signal from the divider port to a combiner port will have insertion loss (i.e. 3 dB nominal loss). Any RF signal from a combiner port to another combiner port will have isolation (i.e. 18 dB nominal loss).
