Description

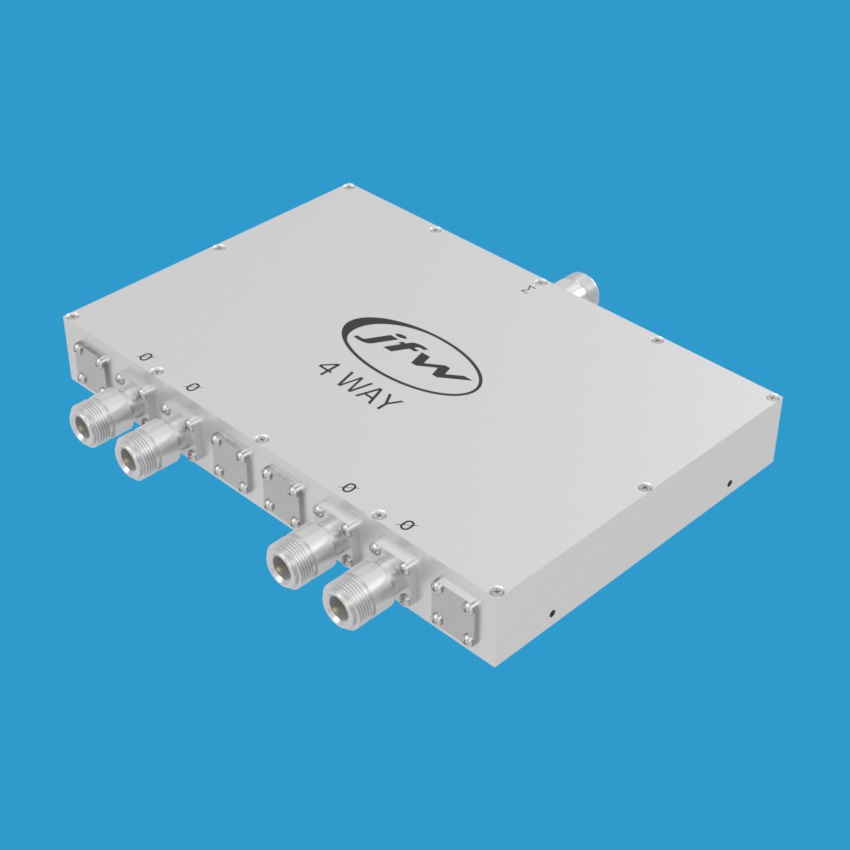

Model 50PD-759 is a 50 Ohm high power reactive 4-Way power divider/combiner that operates from 350-500 MHz. It uses the reactive Wilkinson splitter design which is ideal to fan-in or fan-out RF signals with minimum loss. The divider port is rated for 250 Watts RF input power. Each combiner port is rated for 100 Watts of RF input power. It is available with N or SMA coaxial RF connectors. It has one divider port and two combiner ports. Any signal from divider port to combiner port will have insertion loss (i.e. 6 dB nominal loss). Any signal from a combiner port to another combiner port will have isolation (i.e. minimum of 22 dB loss).
See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers. Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.
