Description

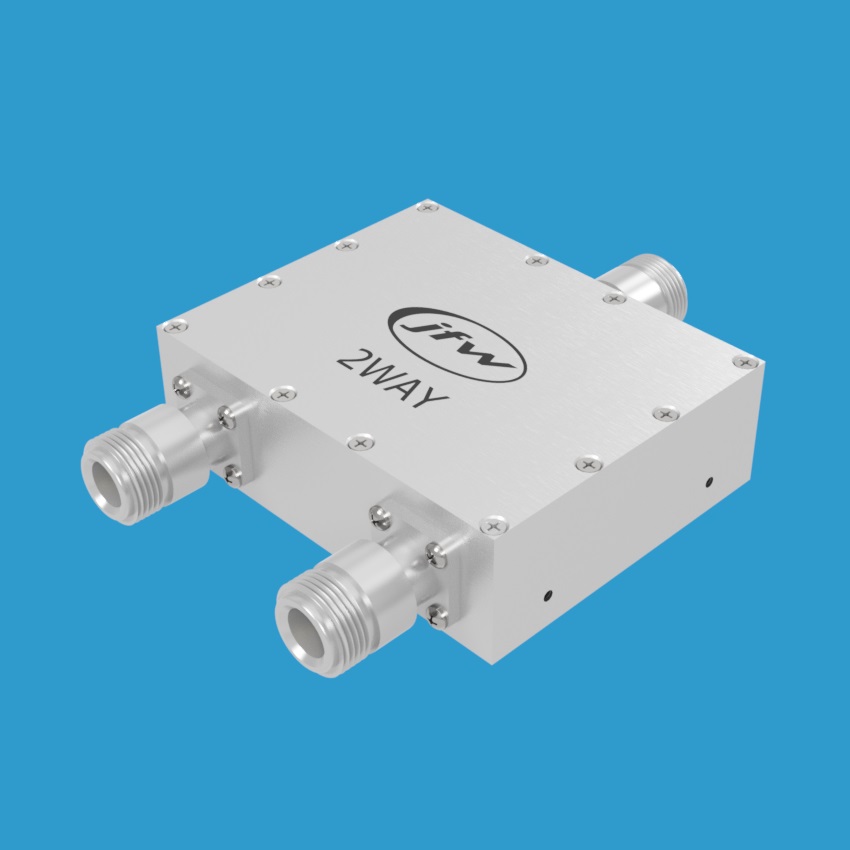

Model 50PD-721 is a high power 50 Ohm resistive 2-Way power divider/combiner operating DC-1200 MHz. It can be used as a divider to divide an 80 Watt RF signal. It can be used as a combiner to combine two 40 Watt RF signals. It is available with 50 Ohm N, SMA or TNC coaxial RF connectors. It is constructed in a star configuration. It has the functionality of a RF hub because every path through the divider/combiner has equal loss.
See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers. Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.
