Description

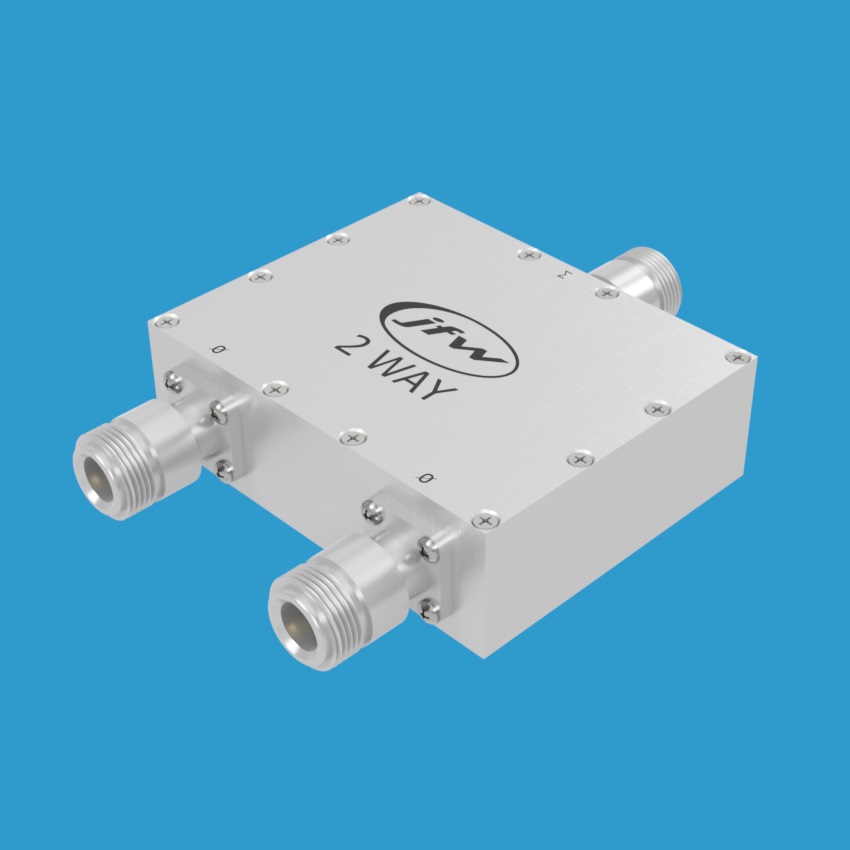

Model 50PD-698 is a 50 Ohm high power reactive 2-Way power divider/combiner that operates from 700-3000 MHz. It uses the reactive Wilkinson splitter design which is ideal to fan-in or fan-out RF signals with minimum loss. The divider port is rated for 100 Watts RF input power. Each combiner port is rated for 25 Watts of RF input power. It is available with N or SMA coaxial RF connectors. It has one divider port and two combiner ports. Any signal from divider port to combiner port will have insertion loss (i.e. 3 dB nominal loss). Any signal from a combiner port to another combiner port will have isolation (i.e. minimum of 20 dB loss).
Example Models:
50PD-698 N (2-Way with N female)
50PD-698 SMA (2-Way with SMA female)
50PD-698-25W-HS N (2-Way with optional 25 Watt heatsink)
50PD-698-25W-HS SMA (2-Way with optional 25 Watt heatsink)
