Description

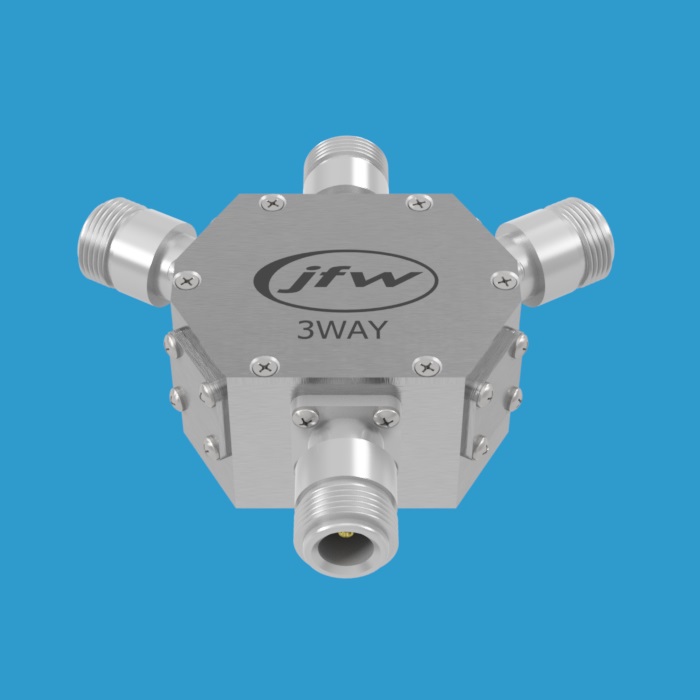

Model 50PD-667 is a high power 50 Ohm resistive 3-Way power divider/combiner operating DC-3000 MHz. It can be used as a divider to divide a 30 Watt RF signal. It can be used as a combiner to combine three 10 Watt RF signals. It is available with 50 Ohm BNC, N SMA or TNC coaxial RF connectors. It is constructed in a star configuration. It has the functionality of a RF hub because every path through the divider/combiner has equal loss.
See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers. Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.
