Description

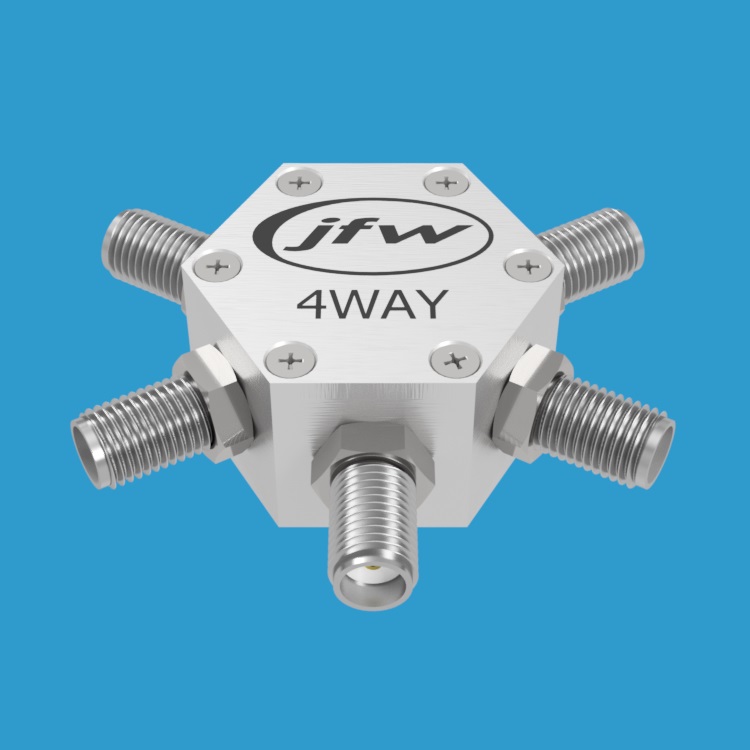

Model 50PD-018 is a 50 Ohm resistive 4-Way power divider/combiner. It is available with 50 Ohm SMA female coaxial RF connectors. It operates DC-2000 MHz and is rated for 2 Watts of RF input power. It is constructed in a star configuration. It has the functionality of a RF hub because every path through the divider/combiner has equal loss.
See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers. Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.
