Additional information
Connector Type |
---|

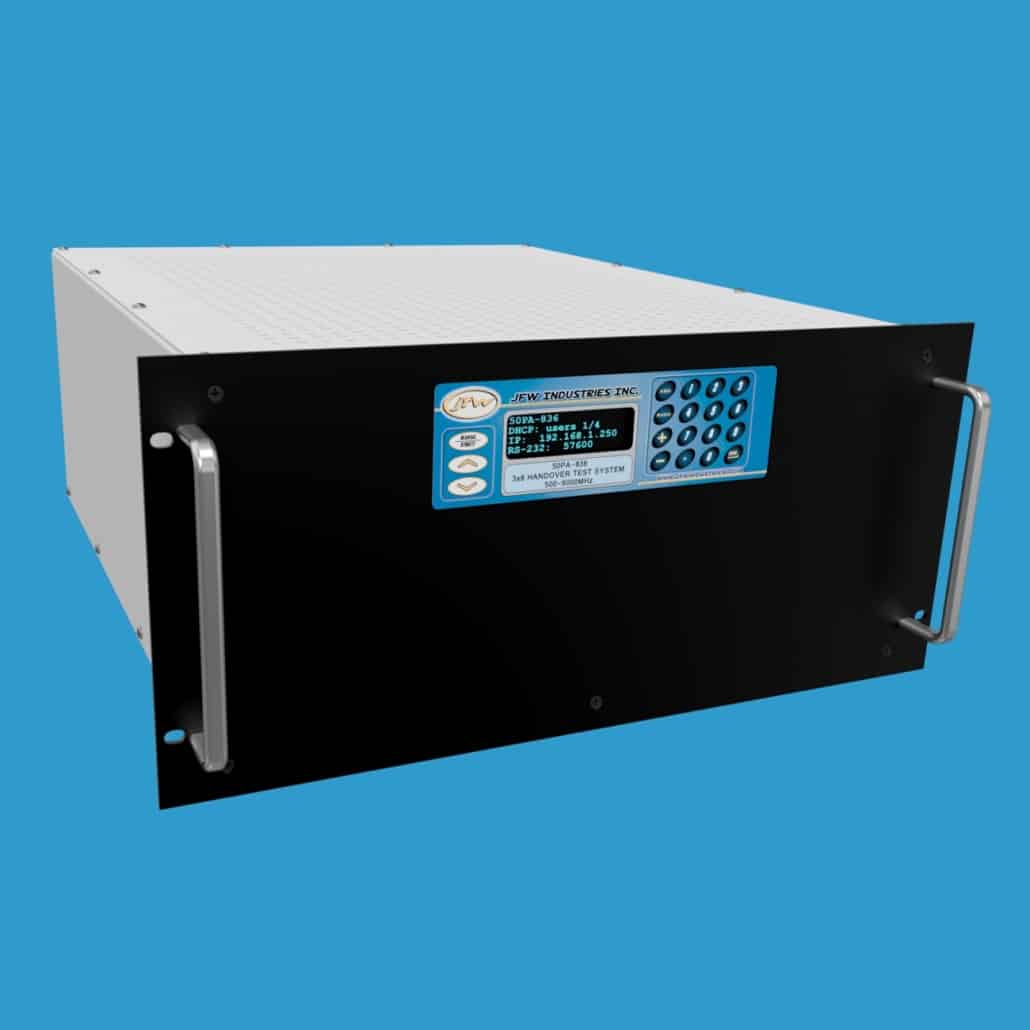

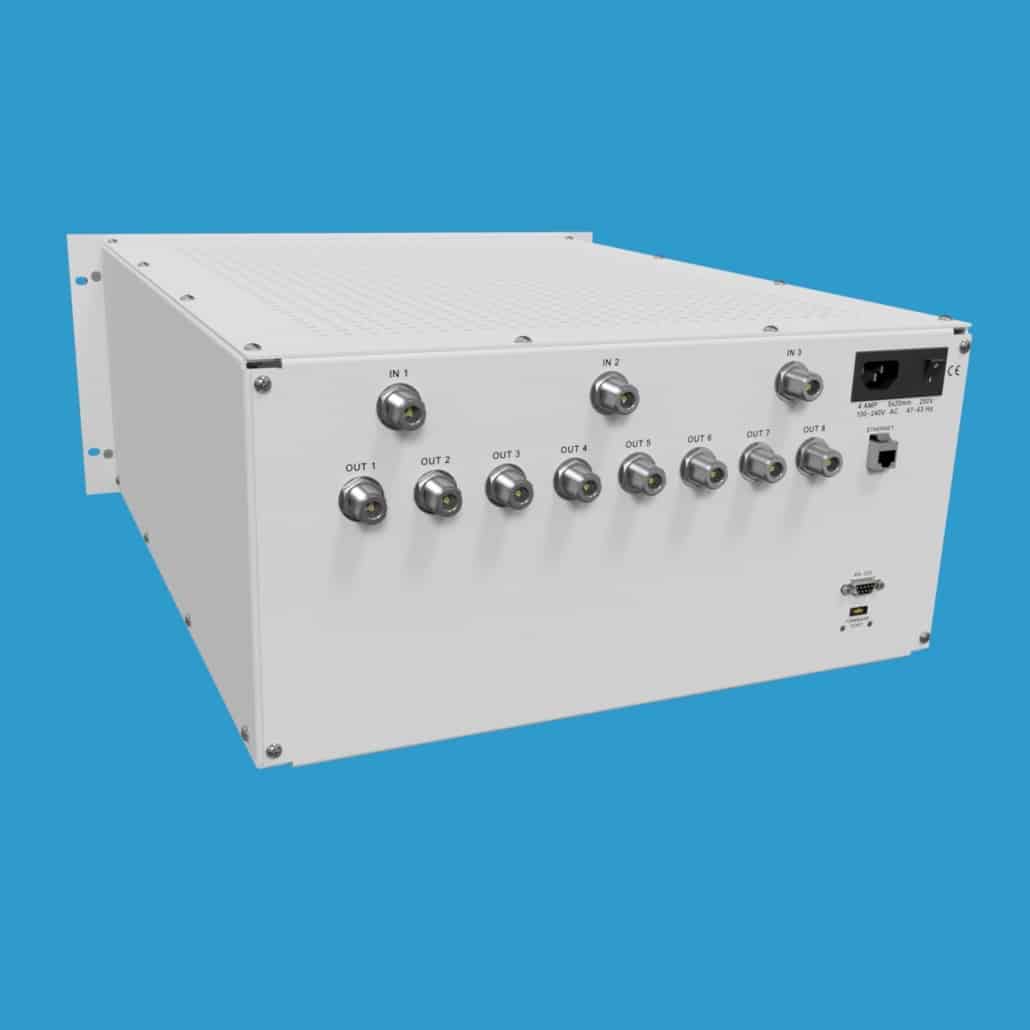

JFW Model #: 50PA-836
Impedance: 50 Ohms
Configuration: 3 x 8 Handover System
dB Total: 95 dB
dB Step: 1 dB
Frequency Start: 500 MHz
Frequency Stop: 6 GHz
Control: Manual, Ethernet, RS-232
RF Connectors: N, SMA Female
Documentation: Data Sheet | Diagram | Drawing
Connector Type |
---|
