Additional information
Connector Type |
---|

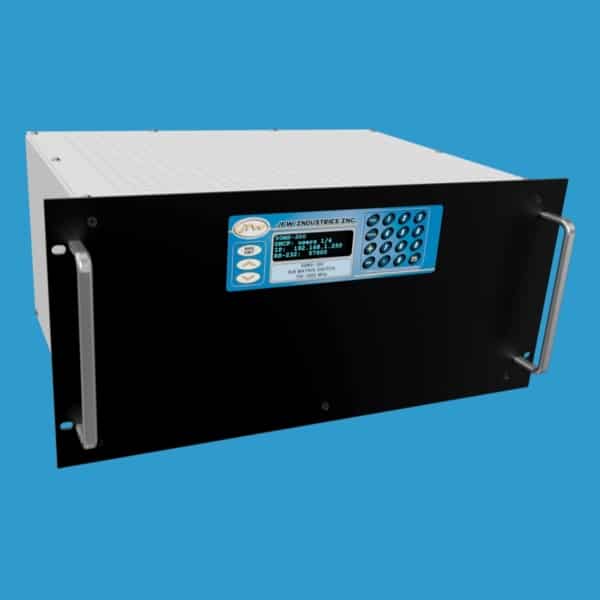

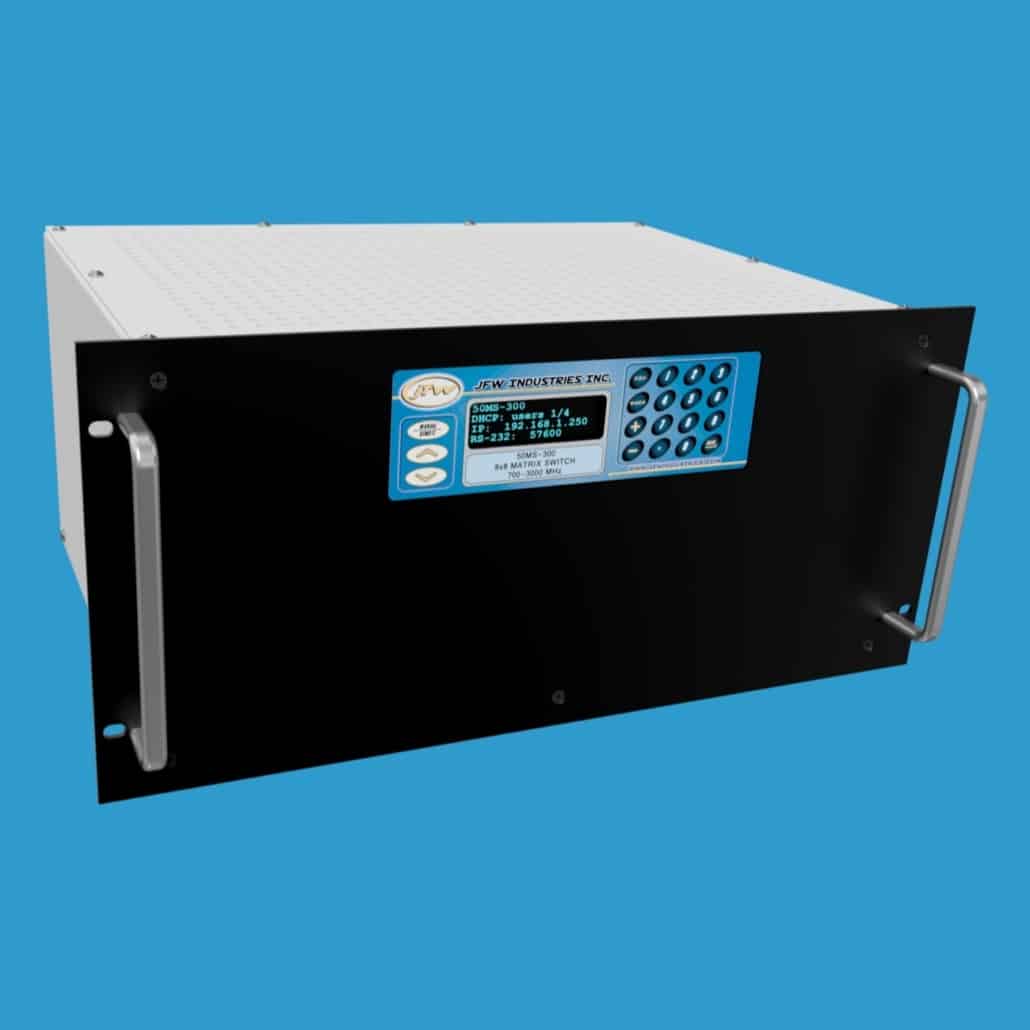

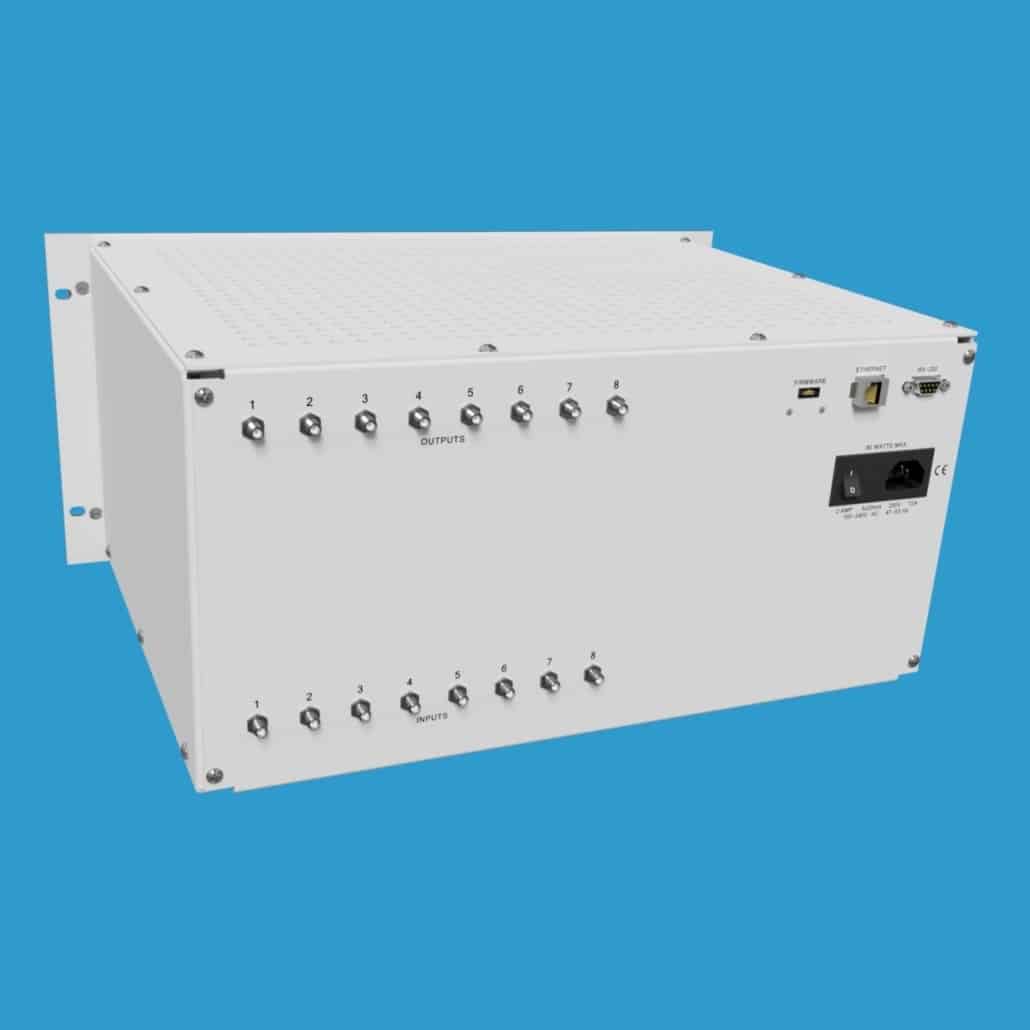

JFW Model #: 50MS-300
Impedance: 50 Ohm
Configuration: 8 x 8 Non-Blocking Matrix Switch
Frequency Range: 700-3000 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +20 dBm
RF Connectors: SMA
Documentation: Data Sheet | Diagram | Drawing
