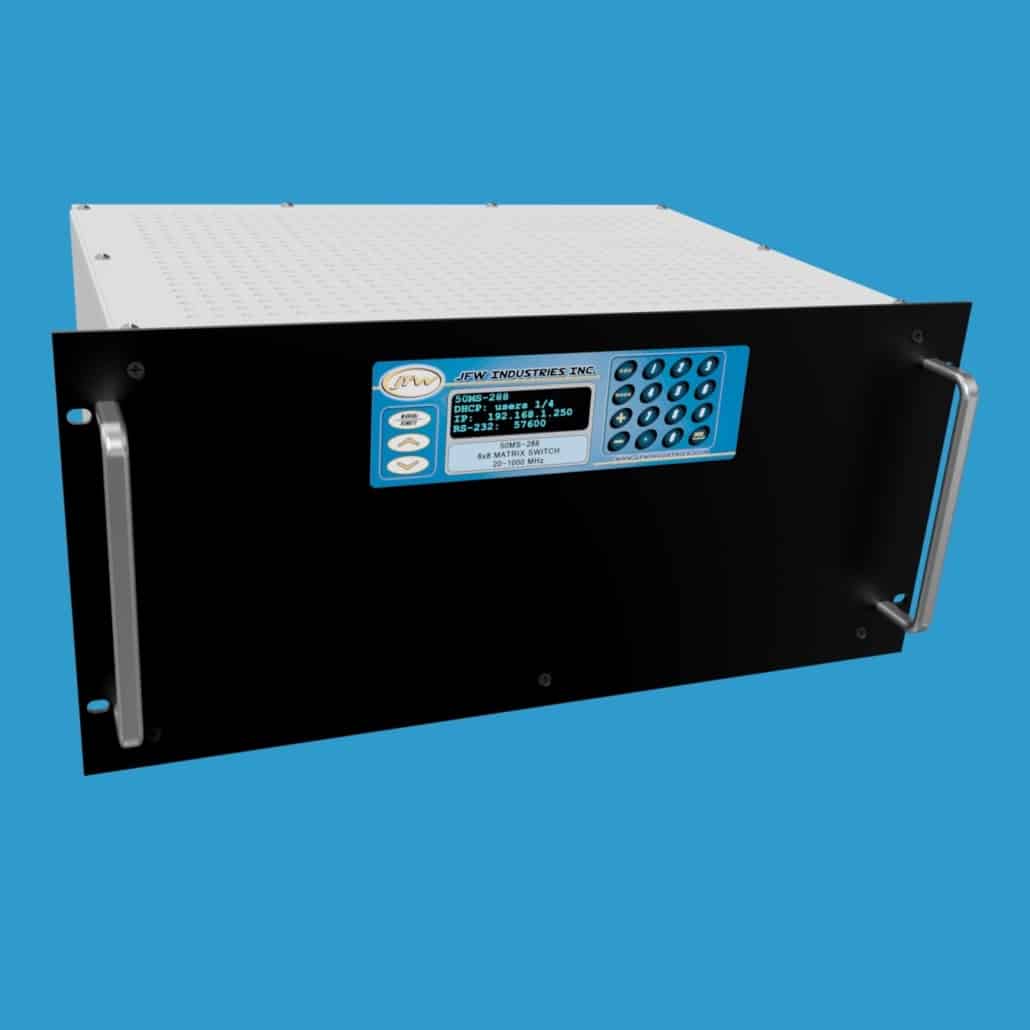

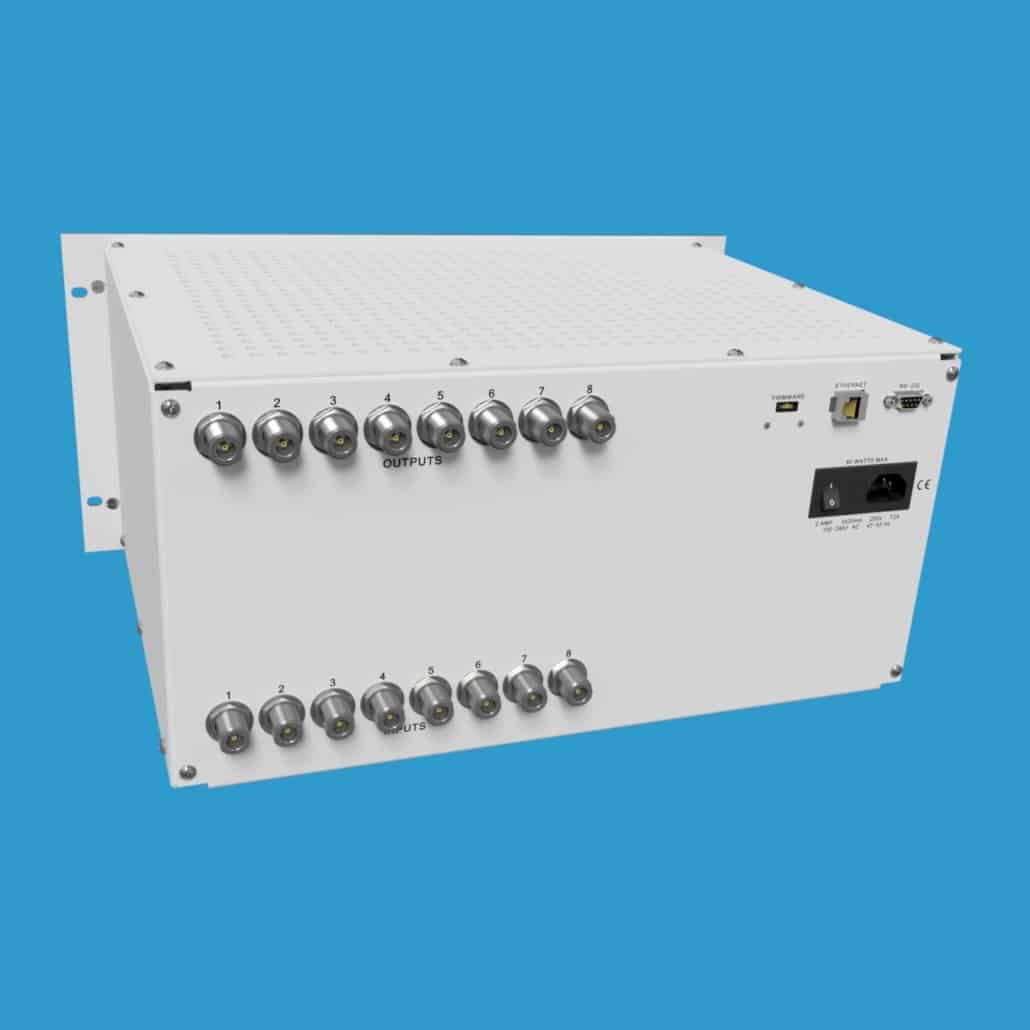

50MS-288 | 8×8 Non-Blocking Matrix Switch

JFW Model #: 50MS-288
Impedance: 50 Ohm
Configuration: 8 x 8 Non-Blocking Matrix Switch
Frequency Range: 20-1000 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +20 dBm
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Diagram | Drawing
