Additional information
Connector Type |
---|
JFW Model #: 50MS-211
Impedance: 50 Ohm

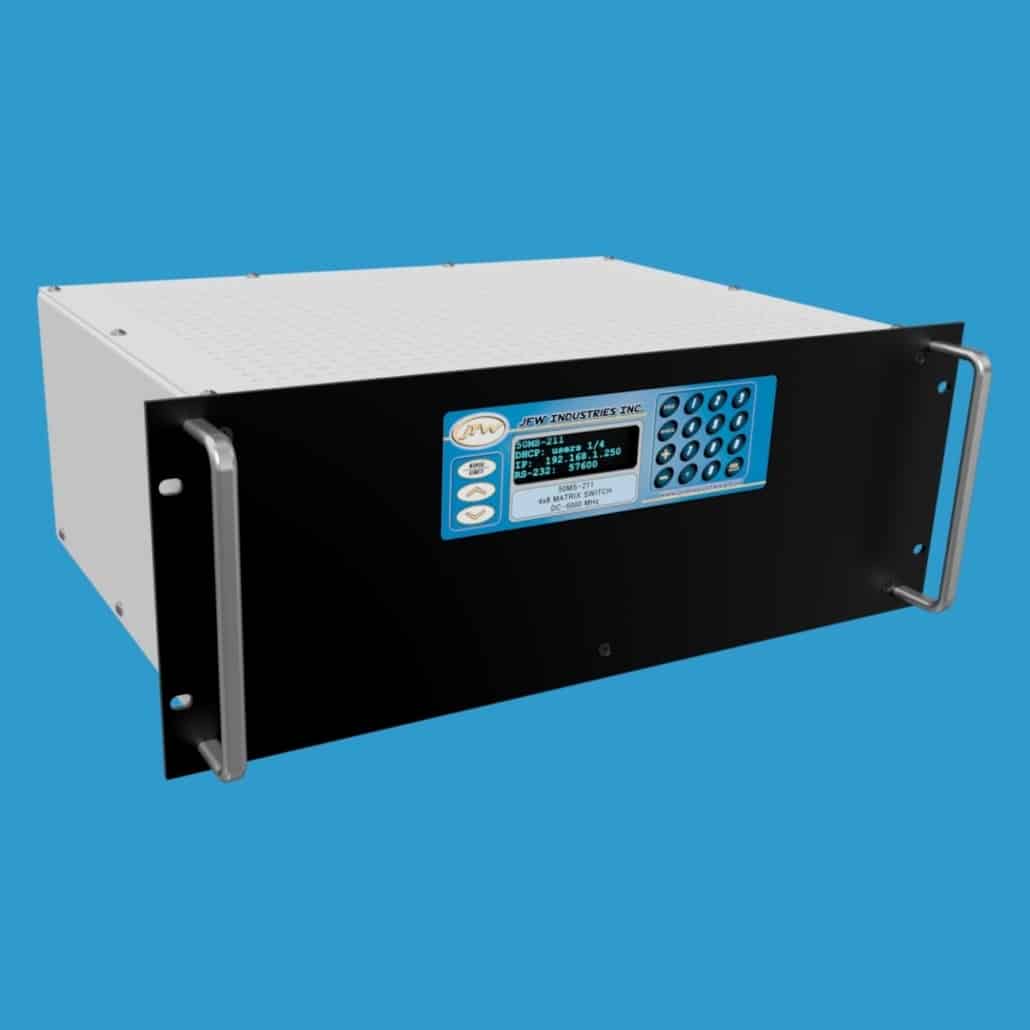

Configuration: 4 x 8 Blocking Matrix Switch
Frequency Range: DC-6 GHz
Switch Type: Electro-mechanical
Unused Ports: Reflective
RF Input Power: 1 Watt

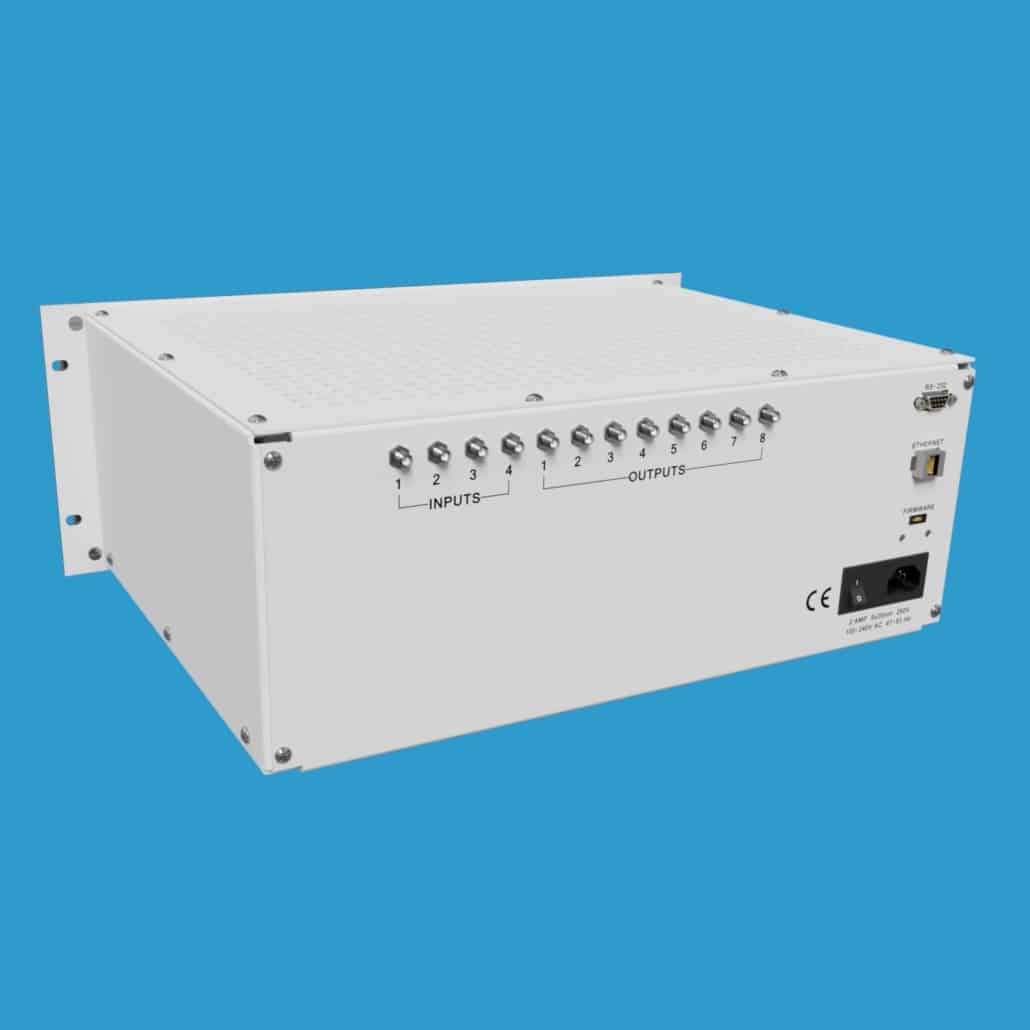

RF Connectors: SMA
Documentation: Data Sheet | Diagram | Drawing
