JFW Model #: 50KFA-097
Description: Calibration kit with Open, Short, Load
Impedance: 50 Ohms
Frequency Start: 0 MHz (DC)
Frequency Stop: 1 GHz
RF Connectors: TNC Female
Documentation: Data Sheet | Drawing

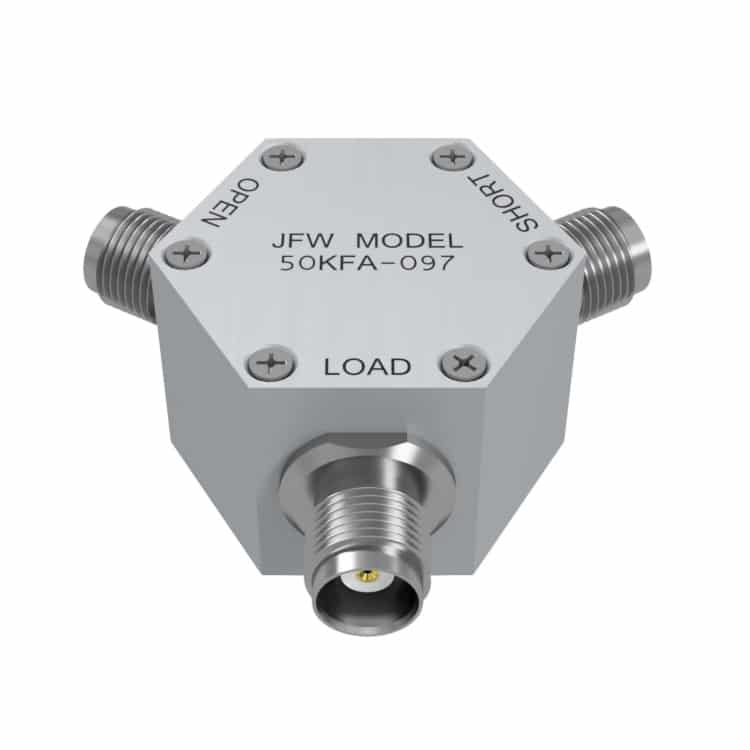

Model 50KFA-097 is a low cost 50 Ohm calibration kit with TNC female connectors. It operates at DC-1000MHz. The kit contains: one Open, one Short, and one Load. The open/short/load are all mounted into an enclosure so that the kit is a single piece.
