Description

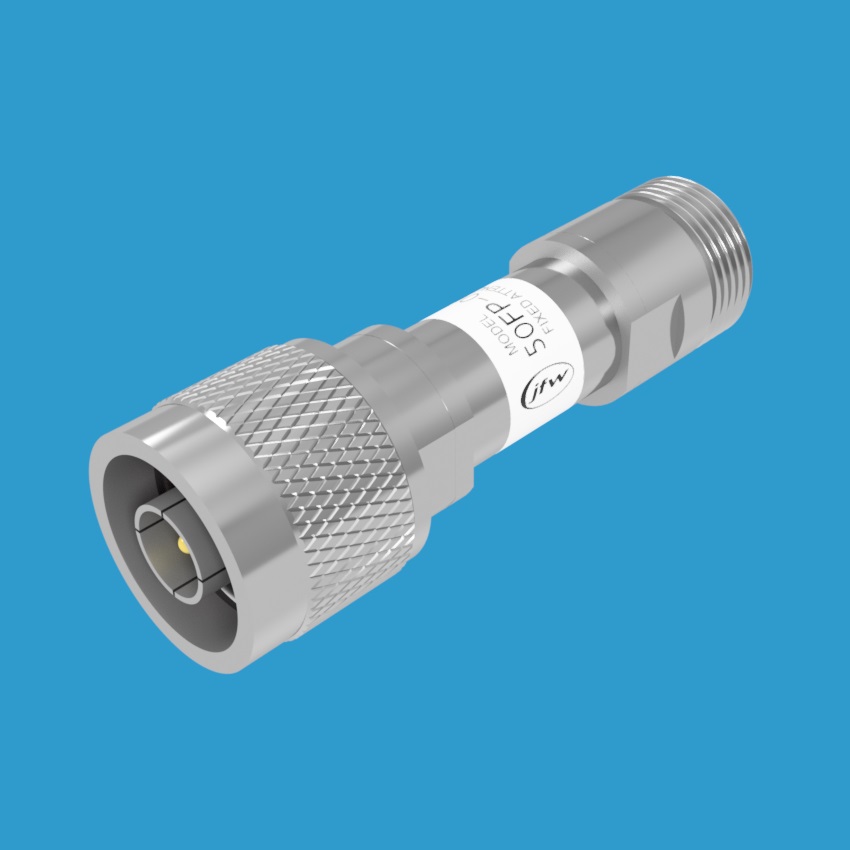

Model 50FP-xxx-H3 is a 50 Ohm coaxial fixed attenuator rated at 2 Watts maximum RF input power and operates DC-3000MHz. Available dB values from 1dB to 30dB.
For model 50FP-XXX-H3, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FP-001-H3 BNC (1dB with BNC male/female)
50FP-002-H3 BNC (2dB with BNC male/female)
50FP-003-H3 BNC (3dB with BNC male/female)
50FP-004-H3 BNC (4dB with BNC male/female)
50FP-005-H3 BNC (5dB with BNC male/female)
50FP-006-H3 N (6dB with N male/female)
50FP-007-H3 N (7dB with N male/female)
50FP-008-H3 N (8dB with N male/female)
50FP-009-H3 N (9dB with N male/female)
50FP-010-H3 N (10dB with N male/female)
50FP-011-H3 TNC (11dB with TNC male/female)
50FP-012-H3 TNC (12dB with TNC male/female)
50FP-013-H3 TNC (13dB with TNC male/female)
50FP-014-H3 TNC (14dB with TNC male/female)
50FP-015-H3 TNC (15dB with TNC male/female)
50FP-016-H3 SMA (16dB with SMA male/female)
50FP-017-H3 SMA (17dB with SMA male/female)
50FP-018-H3 SMA (18dB with SMA male/female)
50FP-019-H3 SMA (19dB with SMA male/female)
50FP-020-H3 SMA (20dB with SMA male/female)
50FP-021-H3 7/16 (21dB with 7/16 male/female)
50FP-022-H3 7/16 (22dB with 7/16 male/female)
50FP-023-H3 7/16 (23dB with 7/16 male/female)
50FP-024-H3 7/16 (24dB with 7/16 male/female)
50FP-025-H3 7/16 (25dB with 7/16 male/female)
50FP-026-H3 4.3-10.0 (26dB with 4.3-10.0 male/female)
50FP-027-H3 4.3-10.0 (27dB with 4.3-10.0 male/female)
50FP-028-H3 4.3-10.0 (28dB with 4.3-10.0 male/female)
50FP-029-H3 4.3-10.0 (29dB with 4.3-10.0 male/female)
50FP-030-H3 4.3-10.0 (30dB with 4.3-10.0 male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FP-003-H3 SMA F/F (SMA female/female)
50FP-006-H3 SMA M/M (SMA male/male)
50FP-010-H3 BNC M/SMA F (BNC male/SMA female)
50FP-010-H3 BNC F/SMA F (BNC female/SMA female)
50FP-020-H3 7/16 M/N F (7/16 male/N female)
