Description

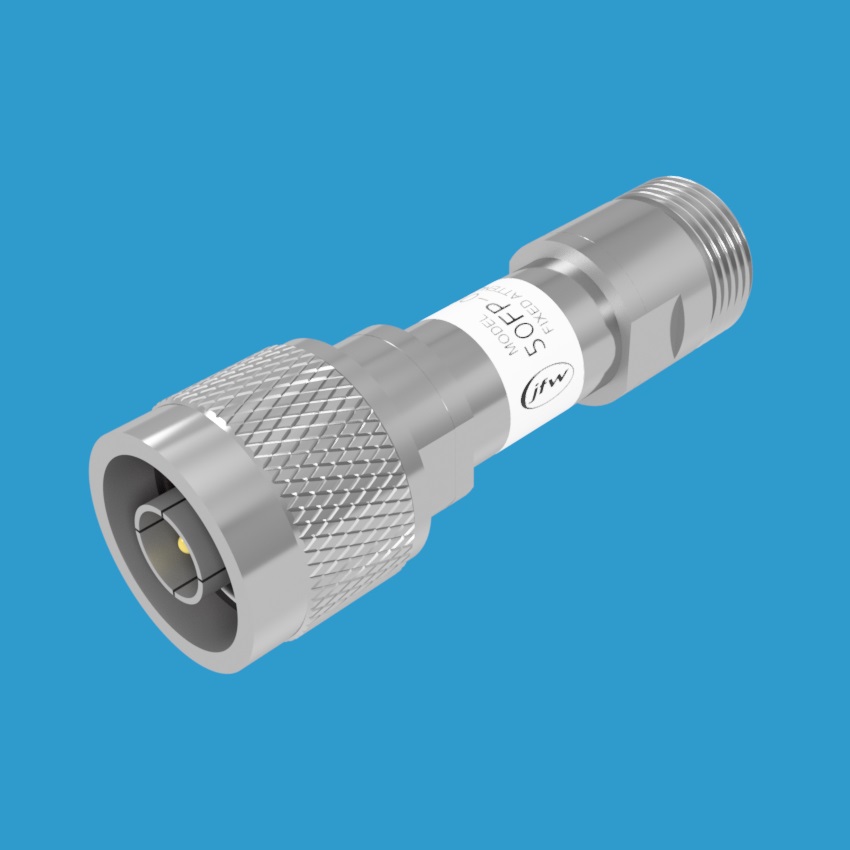

Model 50FP-xxx-H2 is a 50 Ohm coaxial fixed attenuator rated at 2 Watts maximum RF input power and operates DC-2000MHz. Available dB values from 1dB to 65dB.
For model 50FP-XXX-H2, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FP-001-H2 BNC (1dB with BNC male/female)
50FP-002-H2 BNC (2dB with BNC male/female)
50FP-003-H2 BNC (3dB with BNC male/female)
50FP-004-H2 BNC (4dB with BNC male/female)
50FP-005-H2 BNC (5dB with BNC male/female)
50FP-006-H2 BNC (6dB with BNC male/female)
50FP-007-H2 BNC (7dB with BNC male/female)
50FP-008-H2 BNC (8dB with BNC male/female)
50FP-009-H2 BNC (9dB with BNC male/female)
50FP-010-H2 BNC (10dB with BNC male/female)
50FP-011-H2 TNC (11dB with TNC male/female)
50FP-012-H2 TNC (12dB with TNC male/female)
50FP-013-H2 TNC (13dB with TNC male/female)
50FP-014-H2 TNC (14dB with TNC male/female)
50FP-015-H2 TNC (15dB with TNC male/female)
50FP-016-H2 TNC (16dB with TNC male/female)
50FP-017-H2 TNC (17dB with TNC male/female)
50FP-018-H2 TNC (18dB with TNC male/female)
50FP-019-H2 TNC (19dB with TNC male/female)
50FP-020-H2 TNC (20dB with TNC male/female)
50FP-021-H2 SMA (21dB with SMA male/female)
50FP-022-H2 SMA (22dB with SMA male/female)
50FP-023-H2 SMA (23dB with SMA male/female)
50FP-024-H2 SMA (24dB with SMA male/female)
50FP-025-H2 SMA (25dB with SMA male/female)
50FP-026-H2 SMA (26dB with SMA male/female)
50FP-027-H2 SMA (27dB with SMA male/female)
50FP-028-H2 SMA (28dB with SMA male/female)
50FP-029-H2 SMA (29dB with SMA male/female)
50FP-030-H2 SMA (30dB with SMA male/female)
50FP-031-H2 4.3-10.0 (31dB with 4.3-10.0 male/female)
50FP-032-H2 4.3-10.0 (32dB with 4.3-10.0 male/female)
50FP-033-H2 4.3-10.0 (33dB with 4.3-10.0 male/female)
50FP-034-H2 4.3-10.0 (34dB with 4.3-10.0 male/female)
50FP-035-H2 4.3-10.0 (35dB with 4.3-10.0 male/female)
50FP-036-H2 4.3-10.0 (36dB with 4.3-10.0 male/female)
50FP-037-H2 4.3-10.0 (37dB with 4.3-10.0 male/female)
50FP-038-H2 4.3-10.0 (38dB with 4.3-10.0 male/female)
50FP-039-H2 4.3-10.0 (39dB with 4.3-10.0 male/female)
50FP-040-H2 4.3-10.0 (40dB with 4.3-10.0 male/female)
50FP-041-H2 7/16 (41dB with 7/16 male/female)
50FP-042-H2 7/16 (42dB with 7/16 male/female)
50FP-043-H2 7/16 (43dB with 7/16 male/female)
50FP-044-H2 7/16 (44dB with 7/16 male/female)
50FP-045-H2 7/16 (45dB with 7/16 male/female)
50FP-046-H2 7/16 (46dB with 7/16 male/female)
50FP-047-H2 7/16 (47dB with 7/16 male/female)
50FP-048-H2 7/16 (48dB with 7/16 male/female)
50FP-049-H2 7/16 (49dB with 7/16 male/female)
50FP-050-H2 7/16 (50dB with 7/16 male/female)
50FP-051-H2 RPT (51dB with Reverse Polarity TNC male/female)
50FP-052-H2 RPT (52dB with Reverse Polarity TNC male/female)
50FP-053-H2 RPT (53dB with Reverse Polarity TNC male/female)
50FP-054-H2 RPT (54dB with Reverse Polarity TNC male/female)
50FP-055-H2 RPT (55dB with Reverse Polarity TNC male/female)
50FP-056-H2 RPT (56dB with Reverse Polarity TNC male/female)
50FP-057-H2 RPT (57dB with Reverse Polarity TNC male/female)
50FP-058-H2 RPT (58dB with Reverse Polarity TNC male/female)
50FP-059-H2 RPT (59dB with Reverse Polarity TNC male/female)
50FP-060-H2 RPT (60dB with Reverse Polarity TNC male/female)
50FP-061-H2 N (61dB with N male/female)
50FP-062-H2 N (62dB with N male/female)
50FP-063-H2 N (63dB with N male/female)
50FP-064-H2 N (64dB with N male/female)
50FP-065-H2 N (65dB with N male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FP-003-H2 SMA F/F (SMA female/female)
50FP-006-H2 SMA M/M (SMA male/male)
50FP-010-H2 BNC M/SMA F (BNC male/SMA female)
50FP-010-H2 BNC F/SMA F (BNC female/SMA female)
50FP-020-H2 7/16 M/N F (7/16 male/N female)
