50 Watt Fixed Attenuator | 50FHXC-XXX-50

Description

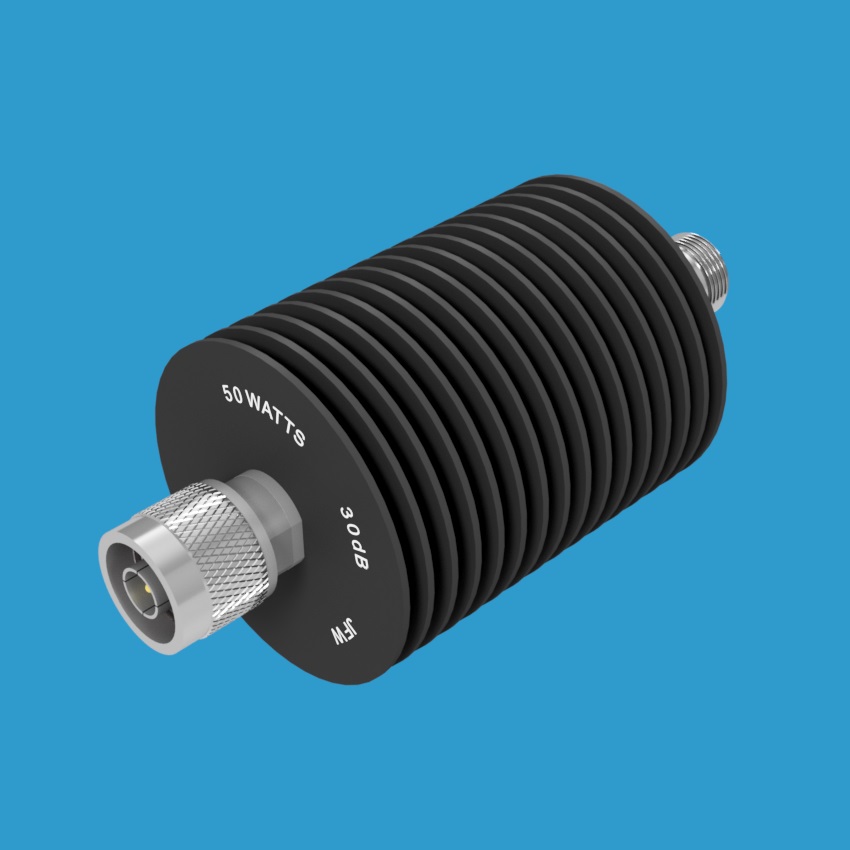

Model 50FHXC-xxx-50 is a 50 Ohm coaxial fixed attenuator with a round heatsink rated at 50 Watts maximum RF input power.  Available dB values from 1dB to 60dB.  For dB values 1-40dB the unit operates DC-4000 MHz.  For dB values 41-60dB the unit operates at DC-3000 MHz.

For model 50FHXC-XXX-50, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FHXC-001-50 N   (1dB with N male/female)
50FHXC-002-50 N   (2dB with N male/female)
50FHXC-003-50 N   (3dB with N male/female)
50FHXC-004-50 N   (4dB with N male/female)
50FHXC-005-50 N   (5dB with N male/female)
50FHXC-006-50 N   (6dB with N male/female)
50FHXC-007-50 N   (7dB with N male/female)

50FHXC-008-50 BNC   (8dB with BNC male/female)
50FHXC-009-50 BNC   (9dB with BNC male/female)
50FHXC-010-50 BNC   (10dB with BNC male/female)
50FHXC-011-50 BNC   (11dB with BNC male/female)
50FHXC-012-50 BNC   (12dB with BNC male/female)
50FHXC-013-50 BNC   (13dB with BNC male/female)
50FHXC-014-50 BNC   (14dB with BNC male/female)

50FHXC-015-50 TNC   (15dB with TNC male/female)
50FHXC-016-50 TNC   (16dB with TNC male/female)
50FHXC-017-50 TNC   (17dB with TNC male/female)
50FHXC-018-50 TNC   (18dB with TNC male/female)
50FHXC-019-50 TNC   (19dB with TNC male/female)
50FHXC-020-50 TNC   (20dB with TNC male/female)
50FHXC-021-50 TNC   (21dB with TNC male/female)

50FHXC-022-50 SMA   (22dB with SMA male/female)
50FHXC-023-50 SMA   (23dB with SMA male/female)
50FHXC-024-50 SMA   (24dB with SMA male/female)
50FHXC-025-50 SMA   (25dB with SMA male/female)
50FHXC-026-50 SMA   (26dB with SMA male/female)
50FHXC-027-50 SMA   (27dB with SMA male/female)
50FHXC-028-50 SMA   (28dB with SMA male/female)

50FHXC-029-50 RPT   (29dB with Reverse Polarity TNC male/female)
50FHXC-030-50 RPT   (30dB with Reverse Polarity TNC male/female)
50FHXC-031-50 RPT   (31dB with Reverse Polarity TNC male/female)
50FHXC-032-50 RPT   (32dB with Reverse Polarity TNC male/female)
50FHXC-033-50 RPT   (33dB with Reverse Polarity TNC male/female)
50FHXC-034-50 RPT   (34dB with Reverse Polarity TNC male/female)
50FHXC-035-50 RPT   (35dB with Reverse Polarity TNC male/female)

50FHXC-036-50 4.3-10.0   (36dB with 4.3-10.0 male/female)
50FHXC-037-50 4.3-10.0   (37dB with 4.3-10.0 male/female)
50FHXC-038-50 4.3-10.0   (38dB with 4.3-10.0 male/female)
50FHXC-039-50 4.3-10.0   (39dB with 4.3-10.0 male/female)
50FHXC-040-50 4.3-10.0   (40dB with 4.3-10.0 male/female)
50FHXC-041-50 4.3-10.0   (41dB with 4.3-10.0 male/female)
50FHXC-042-50 4.3-10.0   (42dB with 4.3-10.0 male/female)

50FHXC-043-50 7/16   (43dB with 7/16 male/female)
50FHXC-044-50 7/16   (44dB with 7/16 male/female)
50FHXC-045-50 7/16   (45dB with 7/16 male/female)
50FHXC-046-50 7/16   (46dB with 7/16 male/female)
50FHXC-047-50 7/16   (47dB with 7/16 male/female)
50FHXC-048-50 7/16   (48dB with 7/16 male/female)
50FHXC-049-50 7/16   (49dB with 7/16 male/female)

50FHXC-050-50 4.1-9.5   (50dB with 4.1-9.5 male/female)
50FHXC-051-50 4.1-9.5   (51dB with 4.1-9.5 male/female)
50FHXC-052-50 4.1-9.5   (52dB with 4.1-9.5 male/female)
50FHXC-053-50 4.1-9.5   (53dB with 4.1-9.5 male/female)
50FHXC-054-50 4.1-9.5   (54dB with 4.1-9.5 male/female)
50FHXC-055-50 4.1-9.5   (55dB with 4.1-9.5 male/female)
50FHXC-056-50 4.1-9.5   (56dB with 4.1-9.5 male/female)
50FHXC-057-50 4.1-9.5   (57dB with 4.1-9.5 male/female)
50FHXC-058-50 4.1-9.5   (58dB with 4.1-9.5 male/female)
50FHXC-059-50 4.1-9.5   (59dB with 4.1-9.5 male/female)
50FHXC-060-50 4.1-9.5   (60dB with 4.1-9.5 male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FHXC-003-50 SMA F/F   (SMA female/female)
50FHXC-006-50 TNC M/M   (TNC male/male)
50FHXC-010-50 BNC M/SMA F   (BNC male/SMA female)
50FHXC-010-50 BNC F/SMA F   (BNC female/SMA female)
50FHXC-020-50 7/16 M/N F   (7/16 male/N female)
