Description

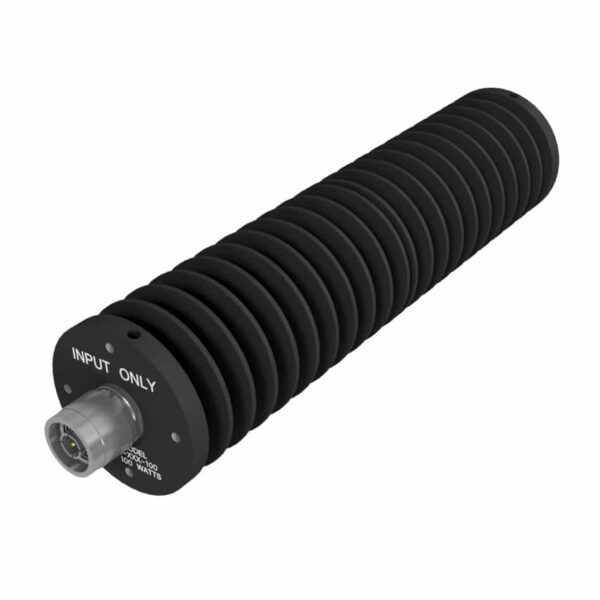

Model 50FHLB-xxx-100 is a uni-directional 100 Watt fixed attenuator that operates DC-3 GHz. It has a heatsink that is only 2.25 inches in diameter. It is available with 50 Ohm coaxial RF connectors: N, 4.3/10, or 7/16. It is currently available with attenuation values 10, 20, or 30dB. Contact JFW for additional dB values. There are mounting holes (8-32 threads) on both ends of the heatsink.
For model 50FHLB-XXX-100, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FHLB-010-100 N (10dB with N male/female)
50FHLB-020-100 N (20dB with N male/female)
50FHLB-030-100 N (30dB with N male/female)
50FHLB-010-100 7/16 (10dB with 7/16 male/female)
50FHLB-020-100 7/16 (20dB with 7/16 male/female)
50FHLB-030-100 7/16 (30dB with 7/16 male/female)
50FHLB-010-100 4.3-10.0 (10dB with 4.3-10.0 male/female)
50FHLB-020-100 4.3-10.0 (20dB with 4.3-10.0 male/female)
50FHLB-030-100 4.3-10.0 (30dB with 4.3-10.0 male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FHLB-020-100 N F/F (N female/female)
50FHLB-020-100 7/16 F/F (7/16 female/female)
50FHLB-020-100 7/16 M/N F (7/16 male/N female)
50FHLB-020-100 4.3-10.0 M/N F (4.3-10.0 male/N female)
