Description

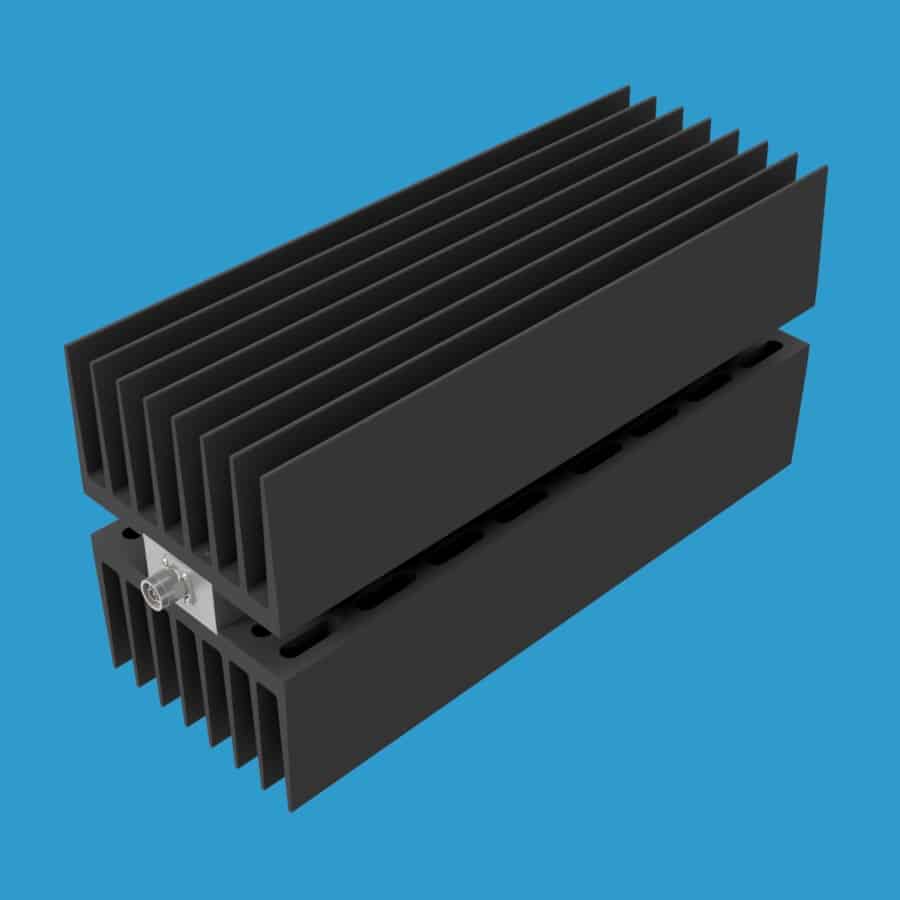

50 Ohm uni-directional coaxial fixed attenuator rated at 1000 Watts maximum RF input power that operates DC-1000 MHz. Available with dB values up to 40dB.
For model 50FHIQ-XXX-1000, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FHIQ-006-1000 N (6dB with N female/male)
50FHIQ-010-1000 N (10dB with N female/male)
50FHIQ-020-1000 N (20dB with N female/male)
50FHIQ-030-1000 N (30dB with N female/male)
50FHIQ-040-1000 N (40dB with N female/male)
50FHIQ-006-1000 N-RC (6dB with N male/female)
50FHIQ-010-1000 N-RC (10dB with N male/female)
50FHIQ-020-1000 N-RC (20dB with N male/female)
50FHIQ-030-1000 N-RC (30dB with N male/female)
50FHIQ-040-1000 N-RC (40dB with N male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FHIQ-020-1000 N F/F (N female/female)
50FHIQ-020-1000 7/16 F/F (7/16 female/female)
50FHIQ-020-1000 N M/TNC F (N male/TNC female)
50FHIQ-020-1000 7/16 M/N F (7/16 male/N female)
