Description

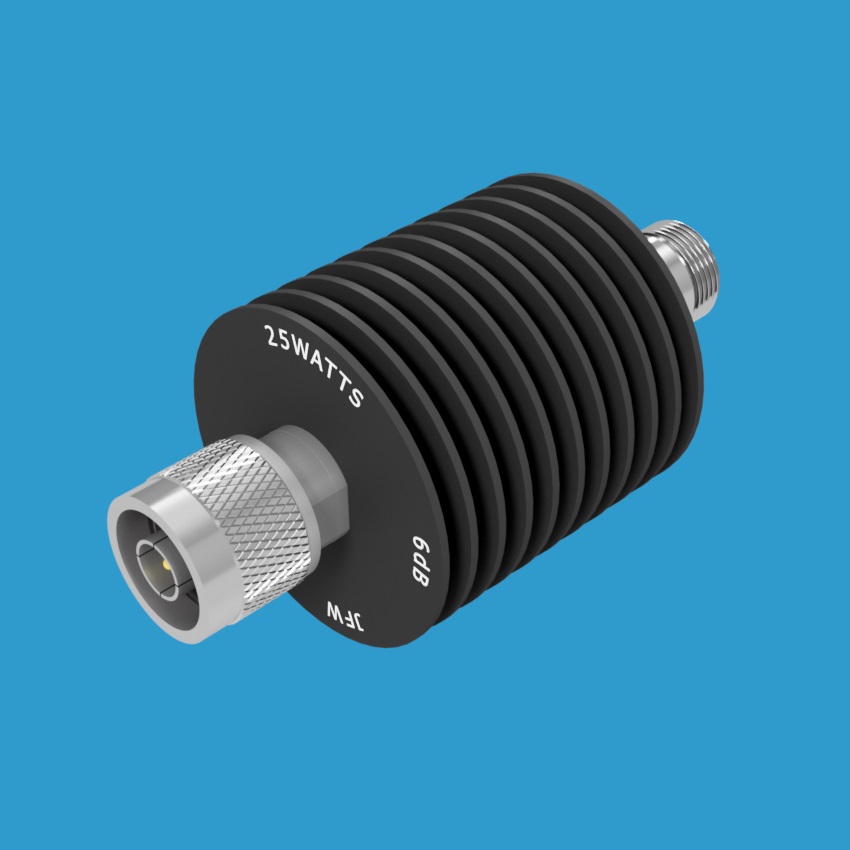

50 Ohm coaxial fixed attenuator with a round heatsink rated at 25 Watts maximum RF input power and operates DC-6000 MHz. Available dB values from 1dB to 50dB.
For model 50FHC-XXX-25-6, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FHC-001-25-6 N (1dB with N male/female)
50FHC-002-25-6 N (2dB with N male/female)
50FHC-003-25-6 N (3dB with N male/female)
50FHC-004-25-6 N (4dB with N male/female)
50FHC-005-25-6 N (5dB with N male/female)
50FHC-006-25-6 N (6dB with N male/female)
50FHC-007-25-6 N (7dB with N male/female)
50FHC-008-25-6 SMA (8dB with SMA male/female)
50FHC-009-25-6 SMA (9dB with SMA male/female)
50FHC-010-25-6 SMA (10dB with SMA male/female)
50FHC-011-25-6 SMA (11dB with SMA male/female)
50FHC-012-25-6 SMA (12dB with SMA male/female)
50FHC-013-25-6 SMA (13dB with SMA male/female)
50FHC-014-25-6 SMA (14dB with SMA male/female)
50FHC-015-25-6 TNC (15dB with TNC male/female)
50FHC-016-25-6 TNC (16dB with TNC male/female)
50FHC-017-25-6 TNC (17dB with TNC male/female)
50FHC-018-25-6 TNC (18dB with TNC male/female)
50FHC-019-25-6 TNC (19dB with TNC male/female)
50FHC-020-25-6 TNC (20dB with TNC male/female)
50FHC-021-25-6 TNC (21dB with TNC male/female)
50FHC-022-25-6 7/16 (22dB with 7/16 male/female)
50FHC-023-25-6 7/16 (23dB with 7/16 male/female)
50FHC-024-25-6 7/16 (24dB with 7/16 male/female)
50FHC-025-25-6 7/16 (25dB with 7/16 male/female)
50FHC-026-25-6 7/16 (26dB with 7/16 male/female)
50FHC-027-25-6 7/16 (27dB with 7/16 male/female)
50FHC-028-25-6 7/16 (28dB with 7/16 male/female)
50FHC-029-25-6 4.3-10.0 (29dB with 4.3-10.0 male/female)
50FHC-030-25-6 4.3-10.0 (30dB with 4.3-10.0 male/female)
50FHC-031-25-6 4.3-10.0 (31dB with 4.3-10.0 male/female)
50FHC-032-25-6 4.3-10.0 (32dB with 4.3-10.0 male/female)
50FHC-033-25-6 4.3-10.0 (33dB with 4.3-10.0 male/female)
50FHC-034-25-6 4.3-10.0 (34dB with 4.3-10.0 male/female)
50FHC-035-25-6 4.3-10.0 (35dB with 4.3-10.0 male/female)
50FHC-036-25-6 4.1-9.5 (36dB with 4.1-9.5 male/female)
50FHC-037-25-6 4.1-9.5 (37dB with 4.1-9.5 male/female)
50FHC-038-25-6 4.1-9.5 (38dB with 4.1-9.5 male/female)
50FHC-039-25-6 4.1-9.5 (39dB with 4.1-9.5 male/female)
50FHC-040-25-6 4.1-9.5 (40dB with 4.1-9.5 male/female)
50FHC-041-25-6 SMA (41dB with SMA male/female)
50FHC-042-25-6 SMA (42dB with SMA male/female)
50FHC-043-25-6 SMA (43dB with SMA male/female)
50FHC-044-25-6 SMA (44dB with SMA male/female)
50FHC-045-25-6 SMA (45dB with SMA male/female)
50FHC-046-25-6 SMA (46dB with SMA male/female)
50FHC-047-25-6 SMA (47dB with SMA male/female)
50FHC-048-25-6 SMA (48dB with SMA male/female)
50FHC-049-25-6 SMA (49dB with SMA male/female)
50FHC-050-25-6 SMA (50dB with SMA male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FHC-003-25-6 SMA F/F (SMA female/female)
50FHC-006-25-6 SMA M/M (SMA male/male)
50FHC-010-25-6 N M/SMA F (N male/SMA female)
50FHC-010-25-6 N F/SMA F (N female/SMA female)
