Description

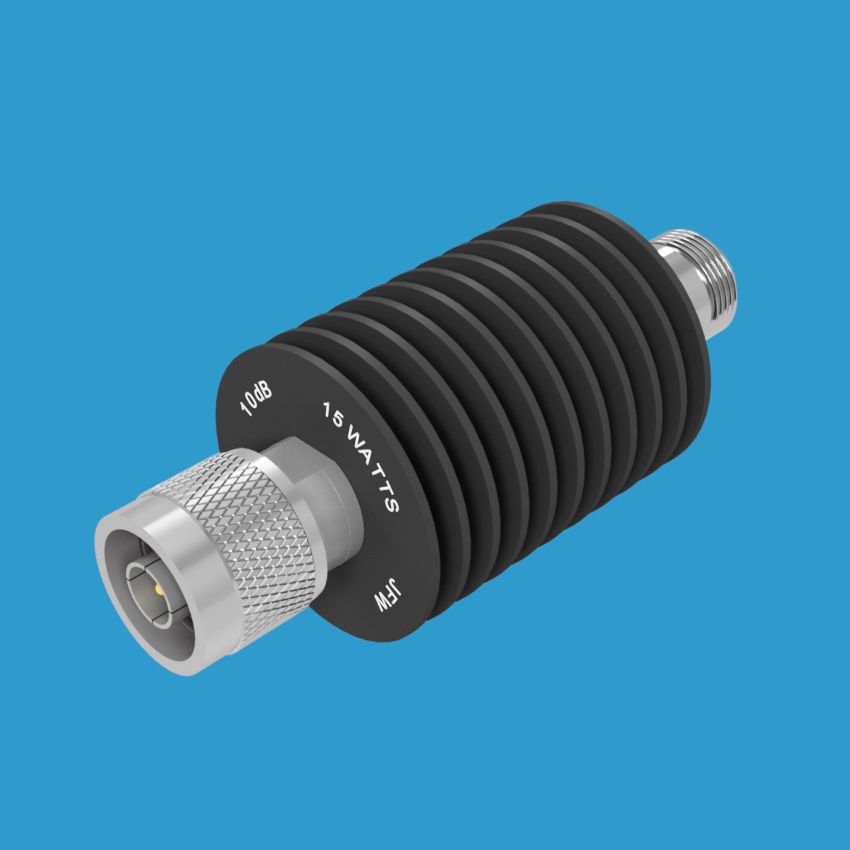

50 Ohm coaxial fixed attenuator with a round heatsink rated at 15 Watts maximum RF input power. Available dB values from 1dB to 60dB. For dB values 1-40dB the unit operates DC-4000 MHz. For dB values 41-60dB the unit operates at DC-3000 MHz.
For model 50FHC-XXX-15, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FHC-001-15 N (1dB with N male/female)
50FHC-002-15 N (2dB with N male/female)
50FHC-003-15 N (3dB with N male/female)
50FHC-004-15 N (4dB with N male/female)
50FHC-005-15 N (5dB with N male/female)
50FHC-006-15 N (6dB with N male/female)
50FHC-007-15 N (7dB with N male/female)
50FHC-008-15 BNC (8dB with BNC male/female)
50FHC-009-15 BNC (9dB with BNC male/female)
50FHC-010-15 BNC (10dB with BNC male/female)
50FHC-011-15 BNC (11dB with BNC male/female)
50FHC-012-15 BNC (12dB with BNC male/female)
50FHC-013-15 BNC (13dB with BNC male/female)
50FHC-014-15 BNC (14dB with BNC male/female)
50FHC-015-15 TNC (15dB with TNC male/female)
50FHC-016-15 TNC (16dB with TNC male/female)
50FHC-017-15 TNC (17dB with TNC male/female)
50FHC-018-15 TNC (18dB with TNC male/female)
50FHC-019-15 TNC (19dB with TNC male/female)
50FHC-020-15 TNC (20dB with TNC male/female)
50FHC-021-15 TNC (21dB with TNC male/female)
50FHC-022-15 SMA (22dB with SMA male/female)
50FHC-023-15 SMA (23dB with SMA male/female)
50FHC-024-15 SMA (24dB with SMA male/female)
50FHC-025-15 SMA (25dB with SMA male/female)
50FHC-026-15 SMA (26dB with SMA male/female)
50FHC-027-15 SMA (27dB with SMA male/female)
50FHC-028-15 SMA (28dB with SMA male/female)
50FHC-029-15 RPT (29dB with Reverse Polarity TNC male/female)
50FHC-030-15 RPT (30dB with Reverse Polarity TNC male/female)
50FHC-031-15 RPT (31dB with Reverse Polarity TNC male/female)
50FHC-032-15 RPT (32dB with Reverse Polarity TNC male/female)
50FHC-033-15 RPT (33dB with Reverse Polarity TNC male/female)
50FHC-034-15 RPT (34dB with Reverse Polarity TNC male/female)
50FHC-035-15 RPT (35dB with Reverse Polarity TNC male/female)
50FHC-036-15 4.3-10.0 (36dB with 4.3-10.0 male/female)
50FHC-037-15 4.3-10.0 (37dB with 4.3-10.0 male/female)
50FHC-038-15 4.3-10.0 (38dB with 4.3-10.0 male/female)
50FHC-039-15 4.3-10.0 (39dB with 4.3-10.0 male/female)
50FHC-040-15 4.3-10.0 (40dB with 4.3-10.0 male/female)
50FHC-041-15 4.3-10.0 (41dB with 4.3-10.0 male/female)
50FHC-042-15 4.3-10.0 (42dB with 4.3-10.0 male/female)
50FHC-043-15 7/16 (43dB with 7/16 male/female)
50FHC-044-15 7/16 (44dB with 7/16 male/female)
50FHC-045-15 7/16 (45dB with 7/16 male/female)
50FHC-046-15 7/16 (46dB with 7/16 male/female)
50FHC-047-15 7/16 (47dB with 7/16 male/female)
50FHC-048-15 7/16 (48dB with 7/16 male/female)
50FHC-049-15 7/16 (49dB with 7/16 male/female)
50FHC-050-15 4.1-9.5 (50dB with 4.1-9.5 male/female)
50FHC-051-15 4.1-9.5 (51dB with 4.1-9.5 male/female)
50FHC-052-15 4.1-9.5 (52dB with 4.1-9.5 male/female)
50FHC-053-15 4.1-9.5 (53dB with 4.1-9.5 male/female)
50FHC-054-15 4.1-9.5 (54dB with 4.1-9.5 male/female)
50FHC-055-15 4.1-9.5 (55dB with 4.1-9.5 male/female)
50FHC-056-15 4.1-9.5 (56dB with 4.1-9.5 male/female)
50FHC-057-15 4.1-9.5 (57dB with 4.1-9.5 male/female)
50FHC-058-15 4.1-9.5 (58dB with 4.1-9.5 male/female)
50FHC-059-15 4.1-9.5 (59dB with 4.1-9.5 male/female)
50FHC-060-15 4.1-9.5 (60dB with 4.1-9.5 male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FHC-003-15 SMA F/F (SMA female/female)
50FHC-006-15 TNC M/M (TNC male/male)
50FHC-010-15 BNC M/SMA F (BNC male/SMA female)
50FHC-010-15 BNC F/SMA F (BNC female/SMA female)
50FHC-020-15 7/16 M/N F (7/16 male/N female)
