Description

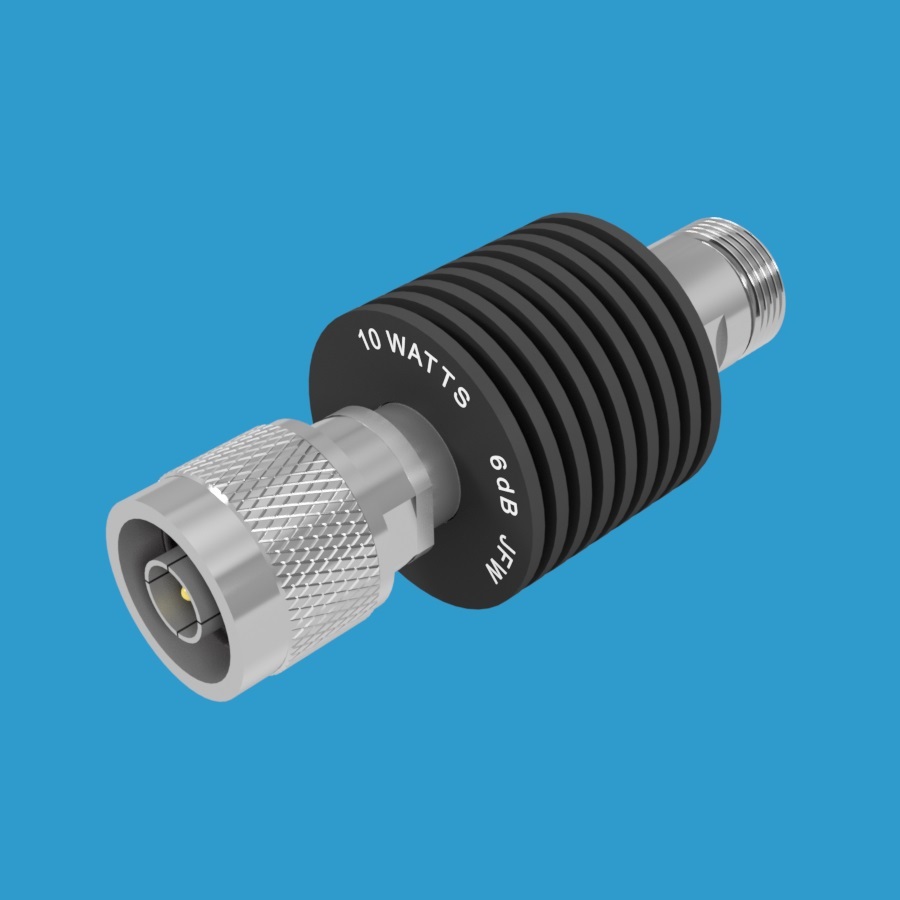

50 Ohm coaxial fixed attenuator with a round heatsink rated at 10 Watts maximum RF input power. Available dB values from 1dB to 60dB. For dB values 1-40dB the unit operates DC-4000 MHz. For dB values 41-60dB the unit operates at DC-3000 MHz.
For model 50FHC-XXX-10, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FHC-001-10 N (1dB with N male/female)
50FHC-002-10 N (2dB with N male/female)
50FHC-003-10 N (3dB with N male/female)
50FHC-004-10 N (4dB with N male/female)
50FHC-005-10 N (5dB with N male/female)
50FHC-006-10 N (6dB with N male/female)
50FHC-007-10 N (7dB with N male/female)
50FHC-008-10 BNC (8dB with BNC male/female)
50FHC-009-10 BNC (9dB with BNC male/female)
50FHC-010-10 BNC (10dB with BNC male/female)
50FHC-011-10 BNC (11dB with BNC male/female)
50FHC-012-10 BNC (12dB with BNC male/female)
50FHC-013-10 BNC (13dB with BNC male/female)
50FHC-014-10 BNC (14dB with BNC male/female)
50FHC-015-10 TNC (15dB with TNC male/female)
50FHC-016-10 TNC (16dB with TNC male/female)
50FHC-017-10 TNC (17dB with TNC male/female)
50FHC-018-10 TNC (18dB with TNC male/female)
50FHC-019-10 TNC (19dB with TNC male/female)
50FHC-020-10 TNC (20dB with TNC male/female)
50FHC-021-10 TNC (21dB with TNC male/female)
50FHC-022-10 SMA (22dB with SMA male/female)
50FHC-023-10 SMA (23dB with SMA male/female)
50FHC-024-10 SMA (24dB with SMA male/female)
50FHC-025-10 SMA (25dB with SMA male/female)
50FHC-026-10 SMA (26dB with SMA male/female)
50FHC-027-10 SMA (27dB with SMA male/female)
50FHC-028-10 SMA (28dB with SMA male/female)
50FHC-029-10 RPT (29dB with Reverse Polarity TNC male/female)
50FHC-030-10 RPT (30dB with Reverse Polarity TNC male/female)
50FHC-031-10 RPT (31dB with Reverse Polarity TNC male/female)
50FHC-032-10 RPT (32dB with Reverse Polarity TNC male/female)
50FHC-033-10 RPT (33dB with Reverse Polarity TNC male/female)
50FHC-034-10 RPT (34dB with Reverse Polarity TNC male/female)
50FHC-035-10 RPT (35dB with Reverse Polarity TNC male/female)
50FHC-036-10 4.3-10.0 (36dB with 4.3-10.0 male/female)
50FHC-037-10 4.3-10.0 (37dB with 4.3-10.0 male/female)
50FHC-038-10 4.3-10.0 (38dB with 4.3-10.0 male/female)
50FHC-039-10 4.3-10.0 (39dB with 4.3-10.0 male/female)
50FHC-040-10 4.3-10.0 (40dB with 4.3-10.0 male/female)
50FHC-041-10 4.3-10.0 (41dB with 4.3-10.0 male/female)
50FHC-042-10 4.3-10.0 (42dB with 4.3-10.0 male/female)
50FHC-043-10 7/16 (43dB with 7/16 male/female)
50FHC-044-10 7/16 (44dB with 7/16 male/female)
50FHC-045-10 7/16 (45dB with 7/16 male/female)
50FHC-046-10 7/16 (46dB with 7/16 male/female)
50FHC-047-10 7/16 (47dB with 7/16 male/female)
50FHC-048-10 7/16 (48dB with 7/16 male/female)
50FHC-049-10 7/16 (49dB with 7/16 male/female)
50FHC-050-10 4.1-9.5 (50dB with 4.1-9.5 male/female)
50FHC-051-10 4.1-9.5 (51dB with 4.1-9.5 male/female)
50FHC-052-10 4.1-9.5 (52dB with 4.1-9.5 male/female)
50FHC-053-10 4.1-9.5 (53dB with 4.1-9.5 male/female)
50FHC-054-10 4.1-9.5 (54dB with 4.1-9.5 male/female)
50FHC-055-10 4.1-9.5 (55dB with 4.1-9.5 male/female)
50FHC-056-10 4.1-9.5 (56dB with 4.1-9.5 male/female)
50FHC-057-10 4.1-9.5 (57dB with 4.1-9.5 male/female)
50FHC-058-10 4.1-9.5 (58dB with 4.1-9.5 male/female)
50FHC-059-10 4.1-9.5 (59dB with 4.1-9.5 male/female)
50FHC-060-10 4.1-9.5 (60dB with 4.1-9.5 male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FHC-003-10 SMA F/F (SMA female/female)
50FHC-006-10 TNC M/M (TNC male/male)
50FHC-010-10 BNC M/SMA F (BNC male/SMA female)
50FHC-010-10 BNC F/SMA F (BNC female/SMA female)
50FHC-020-10 7/16 M/N F (7/16 male/N female)
