Description

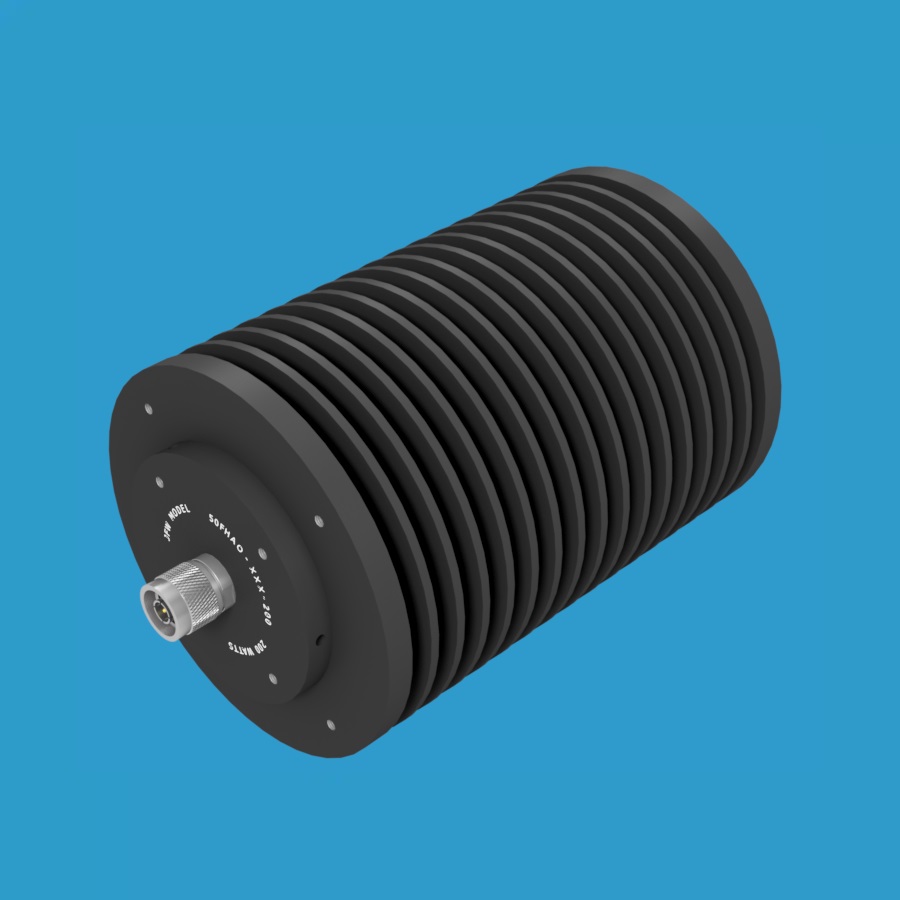

50 Ohm coaxial fixed attenuator with a round heatsink rated at 200 Watts maximum RF input power. It operates at DC-4 GHz with dB values of 30dB or 40dB. The heatsink has mounting holes on the both ends.
For model 50FHAO-XXX-200-4, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FHAO-030-200-4 N (30dB with N male/female)
50FHAO-040-200-4 N (40dB with N male/female)
50FHAO-030-200-4 SMA (30dB with SMA male/female)
50FHAO-040-200-4 SMA (40dB with SMA male/female)
50FHAO-030-200-4 TNC (30dB with TNC male/female)
50FHAO-040-200-4 TNC (40dB with TNC male/female)
50FHAO-030-200-4 4.3-10.0 (30dB with 4.3-10.0 male/female)
50FHAO-040-200-4 4.3-10.0 (40dB with 4.3-10.0 male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FHAO-003-200-4 N F/F (N female/female)
50FHAO-020-200-4 4.3-10.0 F/F (4.3-10.0 female/female)
50FHAO-010-200-4 N M/4.3-10.0 F (N male/4.3-10.0 female)
50FHAO-020-200-4 4.3-10.0 M/N F (4.3-10.0 male/N female)
