Description

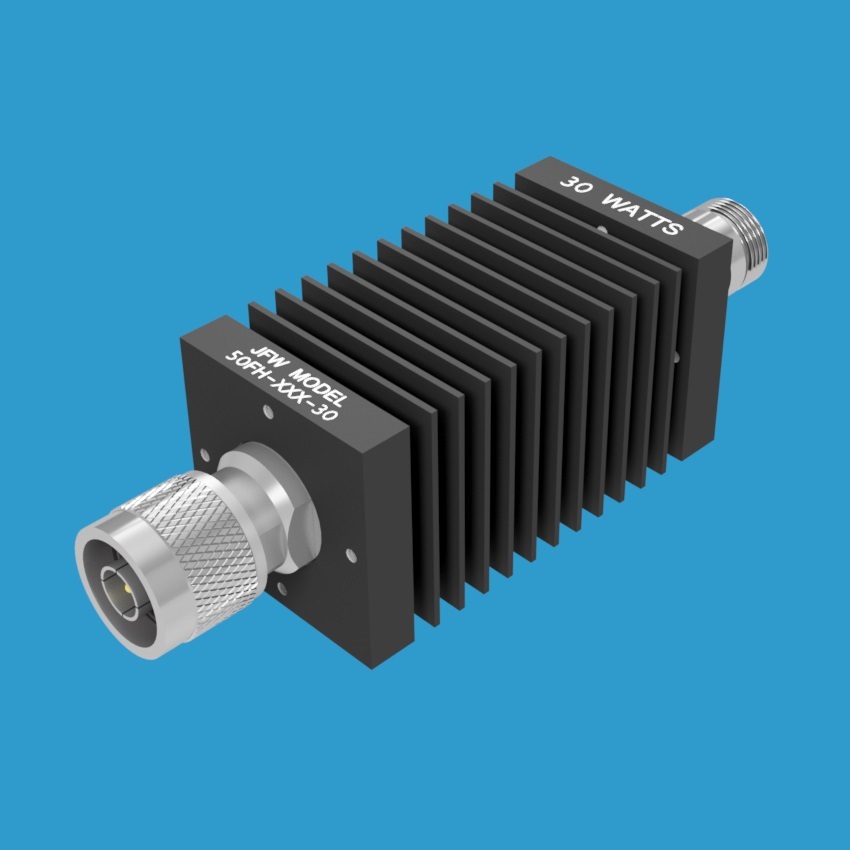

50 Ohm coaxial fixed attenuator rated at 30 Watts maximum RF input power. Available dB values from 1dB to 50dB. The heatsink has mounting holes on both ends and on the bottom side.
For model 50FH-XXX-30, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FH-001-30 N (1dB with N male/female)
50FH-002-30 N (2dB with N male/female)
50FH-003-30 N (3dB with N male/female)
50FH-004-30 N (4dB with N male/female)
50FH-005-30 N (5dB with N male/female)
50FH-006-30 BNC (6dB with BNC male/female)
50FH-007-30 BNC (7dB with BNC male/female)
50FH-008-30 BNC (8dB with BNC male/female)
50FH-009-30 BNC (9dB with BNC male/female)
50FH-010-30 BNC (10dB with BNC male/female)
50FH-011-30 TNC (11dB with TNC male/female)
50FH-012-30 TNC (12dB with TNC male/female)
50FH-013-30 TNC (13dB with TNC male/female)
50FH-014-30 TNC (14dB with TNC male/female)
50FH-015-30 TNC (15dB with TNC male/female)
50FH-016-30 TNC (16dB with TNC male/female)
50FH-017-30 TNC (17dB with TNC male/female)
50FH-018-30 TNC (18dB with TNC male/female)
50FH-019-30 TNC (19dB with TNC male/female)
50FH-020-30 TNC (20dB with TNC male/female)
50FH-021-30 SMA (21dB with SMA male/female)
50FH-022-30 SMA (22dB with SMA male/female)
50FH-023-30 SMA (23dB with SMA male/female)
50FH-024-30 SMA (24dB with SMA male/female)
50FH-025-30 SMA (25dB with SMA male/female)
50FH-026-30 SMA (26dB with SMA male/female)
50FH-027-30 SMA (27dB with SMA male/female)
50FH-028-30 SMA (28dB with SMA male/female)
50FH-029-30 SMA (29dB with SMA male/female)
50FH-030-30 SMA (30dB with SMA male/female)
50FH-031-30 4.3-10.0 (31dB with 4.3-10.0 male/female)
50FH-032-30 4.3-10.0 (32dB with 4.3-10.0 male/female)
50FH-033-30 4.3-10.0 (33dB with 4.3-10.0 male/female)
50FH-034-30 4.3-10.0 (34dB with 4.3-10.0 male/female)
50FH-035-30 4.3-10.0 (35dB with 4.3-10.0 male/female)
50FH-036-30 4.3-10.0 (36dB with 4.3-10.0 male/female)
50FH-037-30 4.3-10.0 (37dB with 4.3-10.0 male/female)
50FH-038-30 4.3-10.0 (38dB with 4.3-10.0 male/female)
50FH-039-30 4.3-10.0 (39dB with 4.3-10.0 male/female)
50FH-040-30 4.3-10.0 (40dB with 4.3-10.0 male/female)
50FH-041-30 7/16 (41dB with 7/16 male/female)
50FH-042-30 7/16 (42dB with 7/16 male/female)
50FH-043-30 7/16 (43dB with 7/16 male/female)
50FH-044-30 7/16 (44dB with 7/16 male/female)
50FH-045-30 7/16 (45dB with 7/16 male/female)
50FH-046-30 4.1-9.5 (46dB with 4.1-9.5 male/female)
50FH-047-30 4.1-9.5 (47dB with 4.1-9.5 male/female)
50FH-048-30 4.1-9.5 (48dB with 4.1-9.5 male/female)
50FH-049-30 4.1-9.5 (49dB with 4.1-9.5 male/female)
50FH-050-30 4.1-9.5 (50dB with 4.1-9.5 male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FH-003-30 SMA F/F (SMA female/female)
50FH-006-30 TNC M/M (TNC male/male)
50FH-010-30 BNC M/SMA F (BNC male/SMA female)
50FH-010-30 BNC F/SMA F (BNC female/SMA female)
50FH-020-30 7/16 M/N F (7/16 male/N female)
