Description

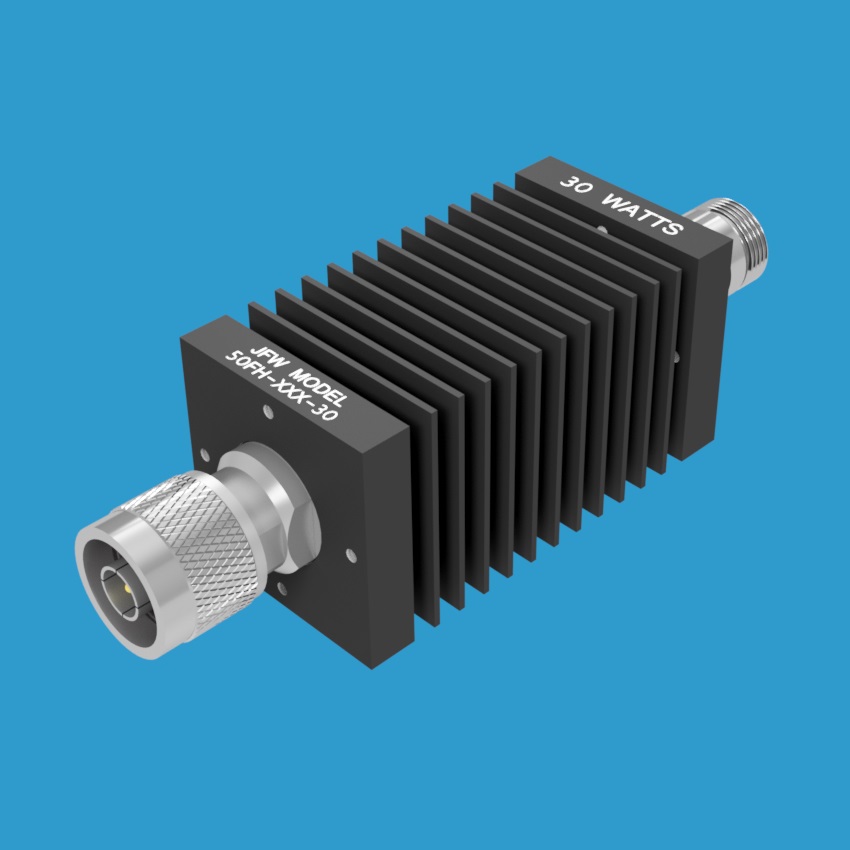

50 Ohm coaxial fixed attenuator rated at 30 Watts maximum RF input power that operates DC-3000 MHz. Available dB values from 1dB to 50dB. The heatsink has mounting holes on both ends and on the bottom side.
For model 50FH-XXX-30-3, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FH-001-30-3 N (1dB with N male/female)
50FH-002-30-3 N (2dB with N male/female)
50FH-003-30-3 N (3dB with N male/female)
50FH-004-30-3 N (4dB with N male/female)
50FH-005-30-3 N (5dB with N male/female)
50FH-006-30-3 BNC (6dB with BNC male/female)
50FH-007-30-3 BNC (7dB with BNC male/female)
50FH-008-30-3 BNC (8dB with BNC male/female)
50FH-009-30-3 BNC (9dB with BNC male/female)
50FH-010-30-3 BNC (10dB with BNC male/female)
50FH-011-30-3 TNC (11dB with TNC male/female)
50FH-012-30-3 TNC (12dB with TNC male/female)
50FH-013-30-3 TNC (13dB with TNC male/female)
50FH-014-30-3 TNC (14dB with TNC male/female)
50FH-015-30-3 TNC (15dB with TNC male/female)
50FH-016-30-3 TNC (16dB with TNC male/female)
50FH-017-30-3 TNC (17dB with TNC male/female)
50FH-018-30-3 TNC (18dB with TNC male/female)
50FH-019-30-3 TNC (19dB with TNC male/female)
50FH-020-30-3 TNC (20dB with TNC male/female)
50FH-021-30-3 SMA (21dB with SMA male/female)
50FH-022-30-3 SMA (22dB with SMA male/female)
50FH-023-30-3 SMA (23dB with SMA male/female)
50FH-024-30-3 SMA (24dB with SMA male/female)
50FH-025-30-3 SMA (25dB with SMA male/female)
50FH-026-30-3 SMA (26dB with SMA male/female)
50FH-027-30-3 SMA (27dB with SMA male/female)
50FH-028-30-3 SMA (28dB with SMA male/female)
50FH-029-30-3 SMA (29dB with SMA male/female)
50FH-030-30-3 SMA (30dB with SMA male/female)
50FH-031-30-3 4.3-10.0 (31dB with 4.3-10.0 male/female)
50FH-032-30-3 4.3-10.0 (32dB with 4.3-10.0 male/female)
50FH-033-30-3 4.3-10.0 (33dB with 4.3-10.0 male/female)
50FH-034-30-3 4.3-10.0 (34dB with 4.3-10.0 male/female)
50FH-035-30-3 4.3-10.0 (35dB with 4.3-10.0 male/female)
50FH-036-30-3 4.3-10.0 (36dB with 4.3-10.0 male/female)
50FH-037-30-3 4.3-10.0 (37dB with 4.3-10.0 male/female)
50FH-038-30-3 4.3-10.0 (38dB with 4.3-10.0 male/female)
50FH-039-30-3 4.3-10.0 (39dB with 4.3-10.0 male/female)
50FH-040-30-3 4.3-10.0 (40dB with 4.3-10.0 male/female)
50FH-041-30-3 7/16 (41dB with 7/16 male/female)
50FH-042-30-3 7/16 (42dB with 7/16 male/female)
50FH-043-30-3 7/16 (43dB with 7/16 male/female)
50FH-044-30-3 7/16 (44dB with 7/16 male/female)
50FH-045-30-3 7/16 (45dB with 7/16 male/female)
50FH-046-30-3 4.1-9.5 (46dB with 4.1-9.5 male/female)
50FH-047-30-3 4.1-9.5 (47dB with 4.1-9.5 male/female)
50FH-048-30-3 4.1-9.5 (48dB with 4.1-9.5 male/female)
50FH-049-30-3 4.1-9.5 (49dB with 4.1-9.5 male/female)
50FH-050-30-3 4.1-9.5 (50dB with 4.1-9.5 male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FH-003-30-3 SMA F/F (SMA female/female)
50FH-006-30-3 TNC M/M (TNC male/male)
50FH-010-30-3 BNC M/SMA F (BNC male/SMA female)
50FH-010-30-3 BNC F/SMA F (BNC female/SMA female)
50FH-020-30-3 7/16 M/N F (7/16 male/N female)
