Description

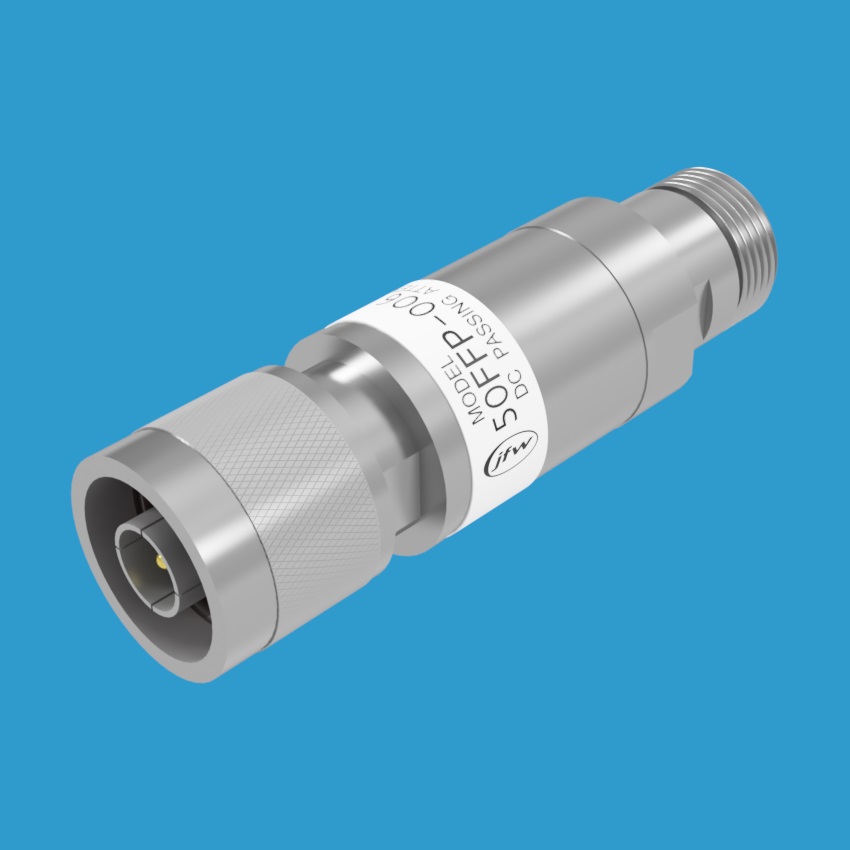

Model 50FFP-xxx is a DC passing coaxial fixed attenuator with 50 Ohm impedance. This attenuator will only attenuate the RF signal (i.e. 400-2500 MHz). The DC signal will not be attenuated. It is rated for 4 Amps DC current and +21 dBm RF input power. Available dB values from 1dB to 10dB.
For model 50FFP-XXX, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FFP-001 N (1dB with N male/female)
50FFP-002 N (2dB with N male/female)
50FFP-003 N (3dB with N male/female)
50FFP-004 SMA (4dB with SMA male/female)
50FFP-005 SMA (5dB with SMA male/female)
50FFP-006 SMA (6dB with SMA male/female)
50FFP-007 BNC (7dB with BNC male/female)
50FFP-008 BNC (8dB with BNC male/female)
50FFP-009 TNC (9dB with TNC male/female)
50FFP-010 TNC (10dB with TNC male/female)
