Description

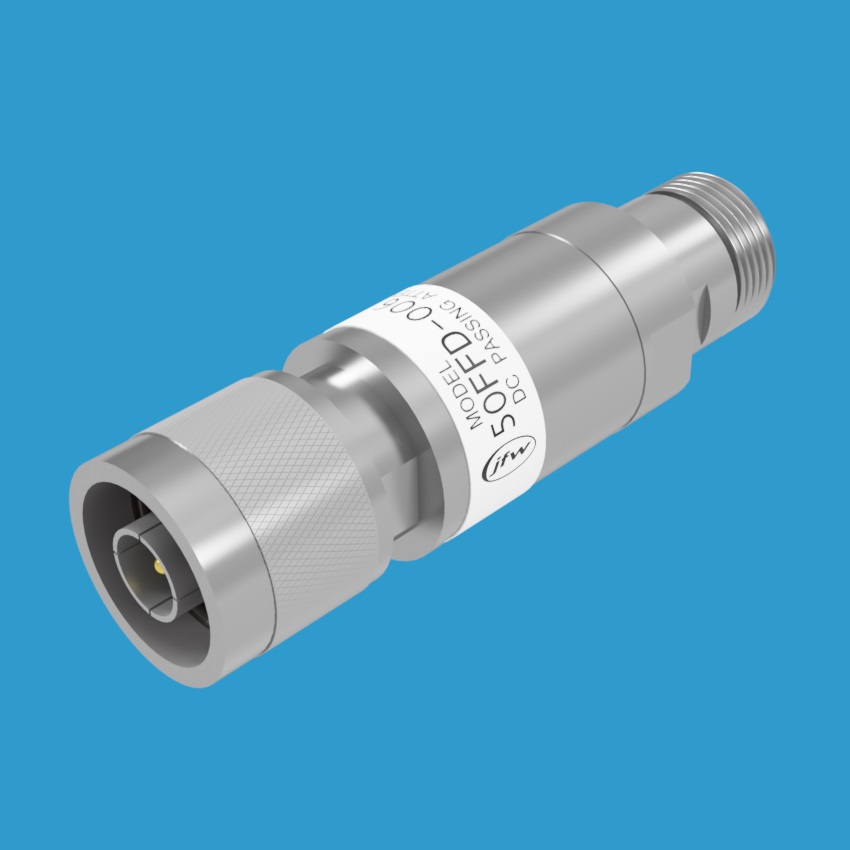

Model 50FFD-xxx is a DC passing coaxial fixed attenuator with 50 Ohm impedance. This attenuator will only attenuate the RF signal (i.e. 600-1950 MHz). The DC signal will not be attenuated. It is rated for 4 Amps DC current and +21 dBm RF input power. Available dB values from 1dB to 30dB.
For model 50FFD-XXX, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FFD-001 N (1dB with N male/female)
50FFD-002 N (2dB with N male/female)
50FFD-003 N (3dB with N male/female)
50FFD-004 SMA (4dB with SMA male/female)
50FFD-005 SMA (5dB with SMA male/female)
50FFD-006 SMA (6dB with SMA male/female)
50FFD-007 SMA (7dB with SMA male/female)
50FFD-008 SMA (8dB with SMA male/female)
50FFD-009 TNC (9dB with TNC male/female)
50FFD-010 TNC (10dB with TNC male/female)
50FFD-015 TNC (15dB with TNC male/female)
50FFD-020 BNC (20dB with BNC male/female)
50FFD-025 BNC (25dB with BNC male/female)
50FFD-030 BNC (30dB with BNC male/female)
Non-standard or mixed RF connector configurations are available upon request:
50FFD-030 TNC F/F (TNC female/female)
50FFD-030 BNC M/M (BNC male/male)
50FFD-030 N M/SMA F (N male/SMA female)
