Description

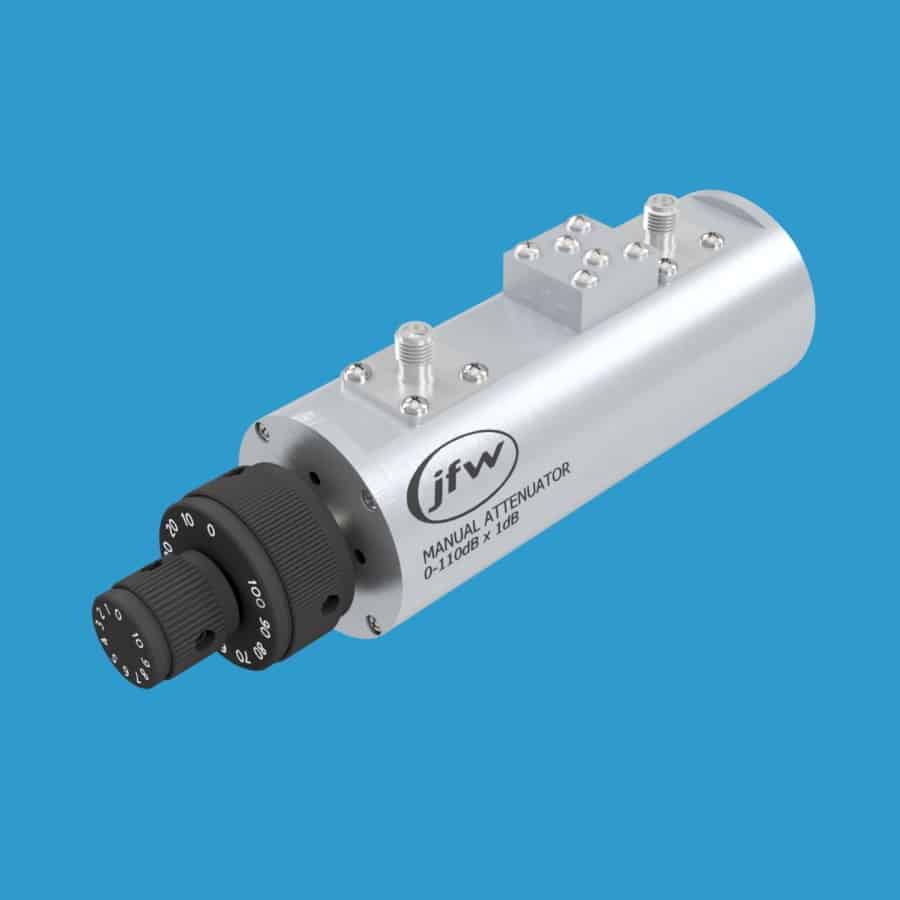

Model 50DR-001 is a 50 Ohm manual step attenuator with attenuation range 0 to 110dB by 1dB steps. It operates DC-1000 MHz and is rated for 2 Watts average RF power. It is a dual rotary attenuator (i.e. two manual knobs). The small knob is 1dB step. The large knob is 10dB step. It is available with 50 Ohm coaxial RF connectors: BNC, N, SMA or TNC female. The attenuator has four mounting holes in the front plate to allow for easy panel mounting.
