Description

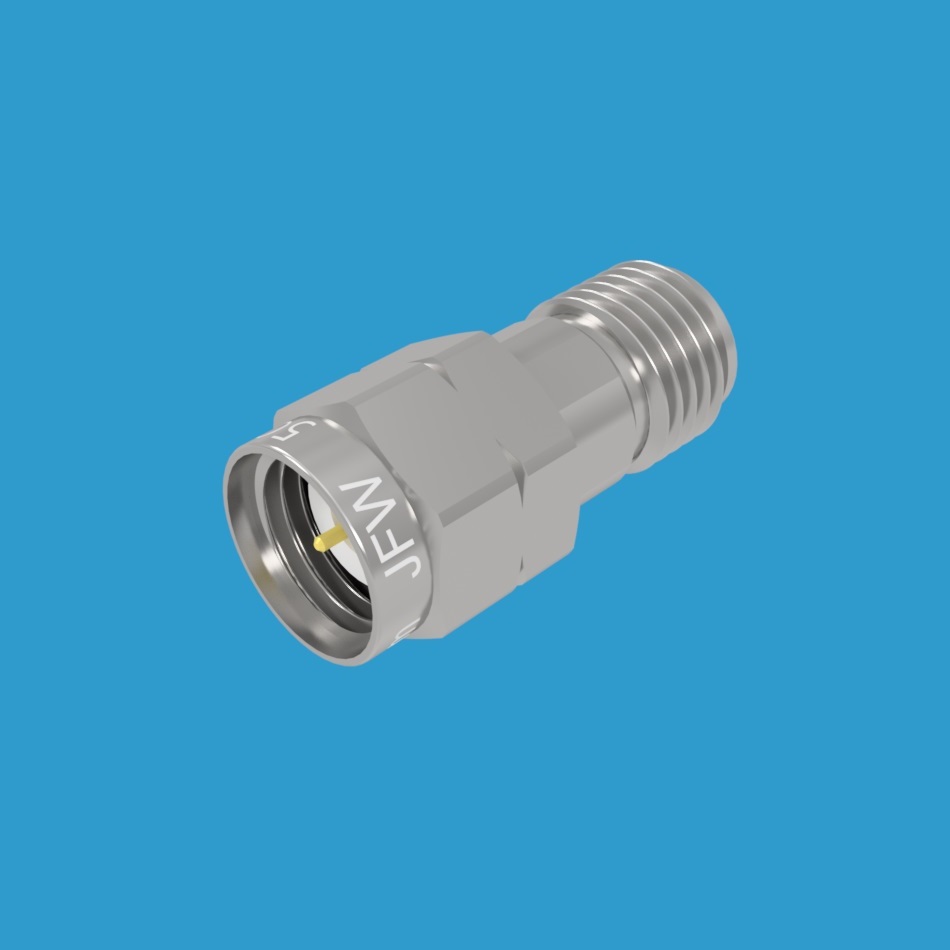

Model 50DB-096 is a 50 Ohm DC block with 2.4mm male/female connectors. It is an inner only type DC block. It operates 10MHz to 50GHz and is rated for up to 60 Vdc.
JFW Model #: 50DB-096
Description: DC Block
Type: Inner only
Impedance: 50 Ohm
Frequency Start: 10 MHz
Frequency Stop: 50 GHz
Breakdown Voltage: 60 Volts
RF Connectors: 2.4 mm Male/Female
Documentation: Data Sheet | Drawing
Model 50DB-096 is a 50 Ohm DC block with 2.4mm male/female connectors. It is an inner only type DC block. It operates 10MHz to 50GHz and is rated for up to 60 Vdc.
Connector Type |
---|
