Description

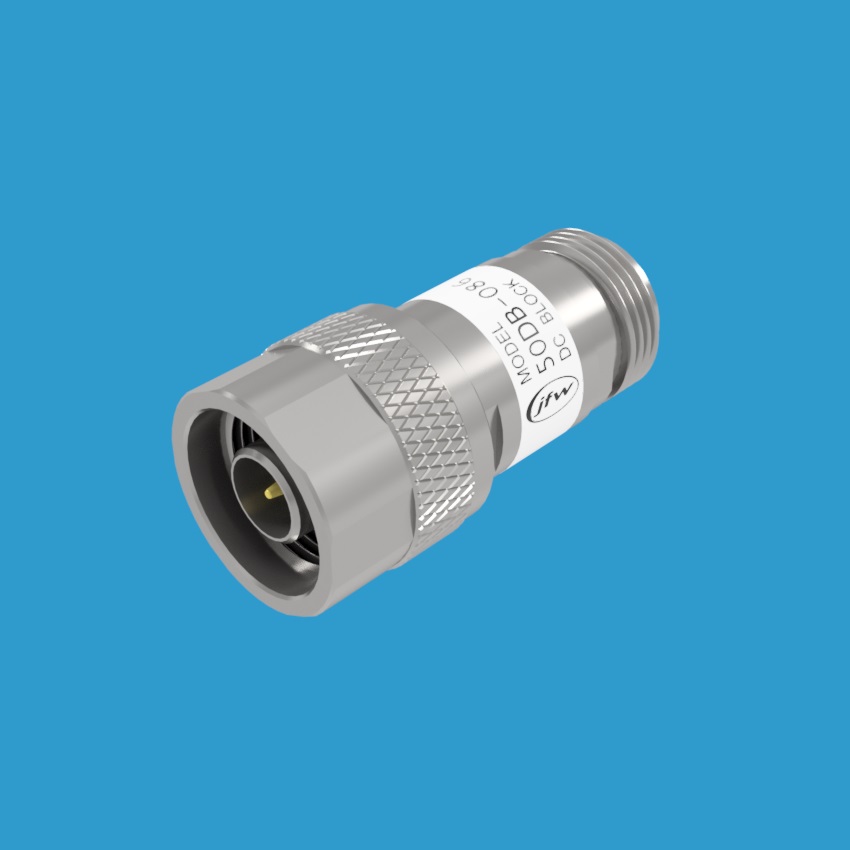

Model 50DB-086 is a 50 Ohm DC block with N male/female connectors. It is an inner only type DC block. It operates 9KHz to 18GHz and is rated for up to 50 Vdc.
50DB-086 N | DC Block 9KHz-18GHz
JFW Model #: 50DB-086
Description: DC Block
Type: Inner only
Impedance: 50 Ohm
Frequency Start: 9 KHz (0.009 MHz)
Frequency Stop: 18 GHz
Breakdown Voltage: 50 Volts
RF Connectors: N Male/Female
Documentation: Data Sheet | Drawing
