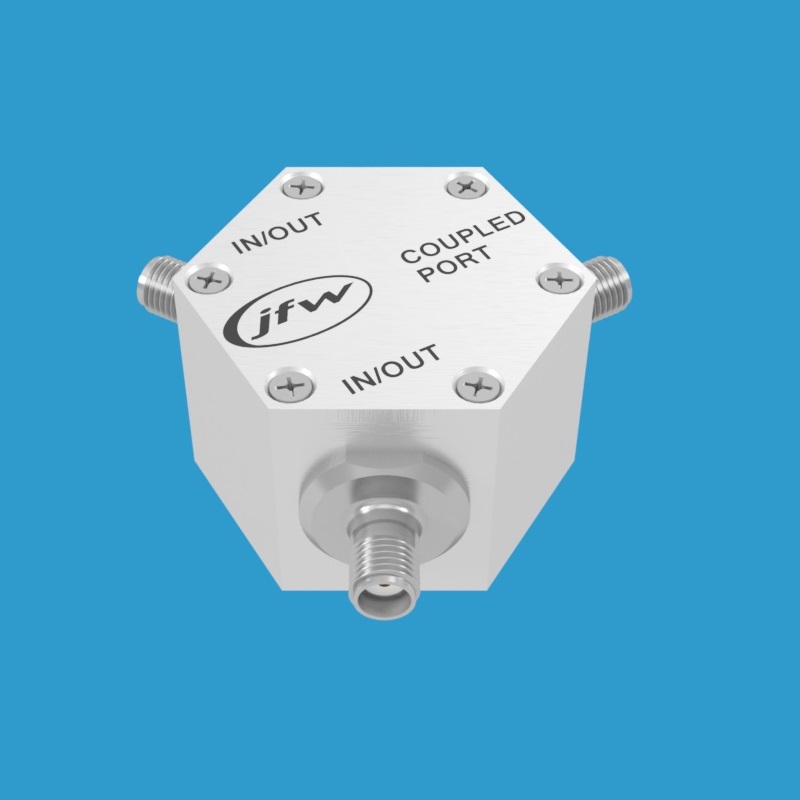

50C-053-10 is a 10dB resistive coupler that is available with N or SMA connectors.

Resistive Coupler DC-3.1 GHz | 50C-053-XX

JFW Model #: 50C-053-XX
Impedance: 50 Ohm
Description: Resistive Coupler
Coupling Value: 10 dB
Frequency Range: DC-3100 MHz
RF Input Power: 5 Watts
RF Connectors: N, SMA
Documentation: Data Sheet | Drawing (N) | Drawing (N m/f/f) | Drawing (SMA)

Categories: ,

Description

50C-053-XX is a 10dB resistive coupler.  It couples in both directions.  This model operates from DC to 3100 MHz and is rated for up to 5 Watts input power.

RF path descriptions:

  • IN/OUT to IN/OUT:  insertion loss
  • IN/OUT to COUPLED PORT:  coupled value
  • COUPLED PORT to IN/OUT:  coupled value
