Description

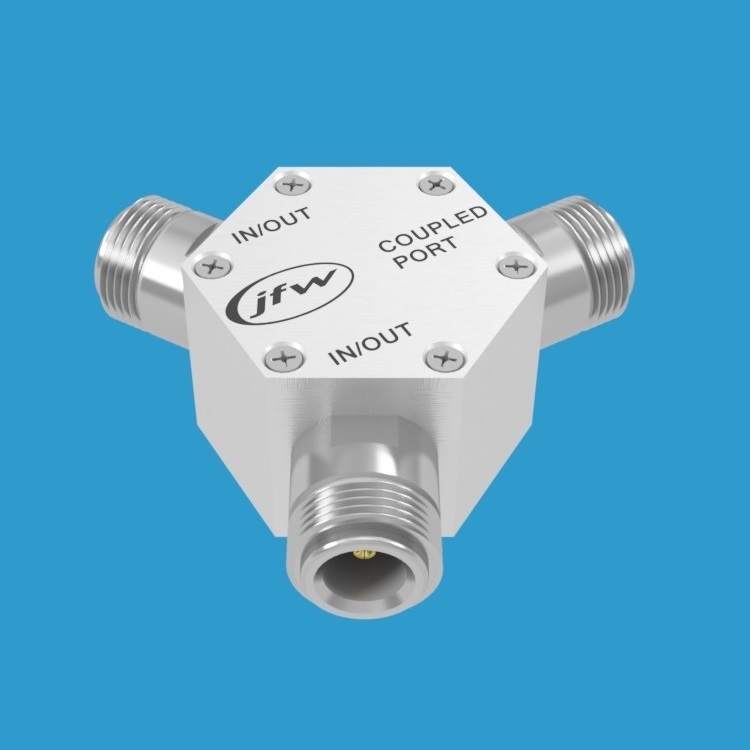

50C-041-20 is a resistive coupler. It couples in both directions. This model operates from DC to 2000 MHz.
RF path descriptions:
- IN/OUT to IN/OUT: insertion loss
- IN/OUT to COUPLED PORT: coupled value
- COUPLED PORT to IN/OUT: coupled value
Resistive Coupler DC-2 GHz | 50C-041-20
JFW Model #: 50C-041-20
Impedance: 50 Ohm
Description: Resistive Coupler
Coupling Value: 20 dB
Frequency Range: DC-2000 MHz
RF Input Power: 5 Watts
RF Connectors: N, RP-TNC, SMA
Documentation: Data Sheet | Drawing (N) | Drawing (SMA)
