Additional information
Connector Type | BNC Female/Female, BNC Male/Female, N Female/Female, N Male/Female, SMA Female/Female, SMA Male/Female, TNC Female/Female, TNC Male/Female |
---|

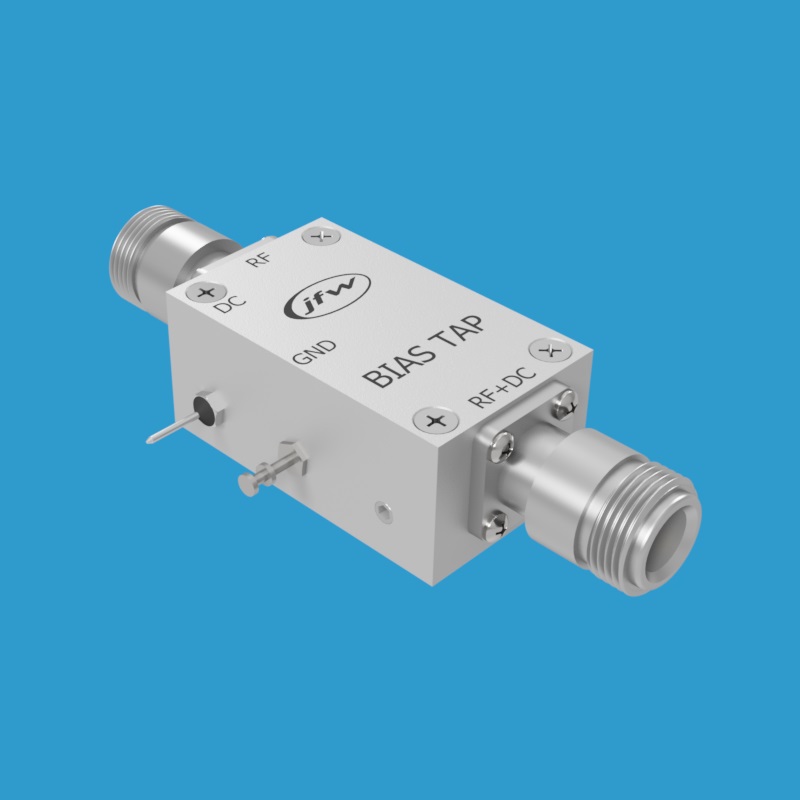

JFW Model #: 50BT-017
Type: Bias Tap
Impedance: 50 Ohm
Frequency Range: 100-1750 MHz
DC Voltage: 200 Volts
DC Current: 2 Amps
DC Connector: Terminal
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing
Connector Type | BNC Female/Female, BNC Male/Female, N Female/Female, N Male/Female, SMA Female/Female, SMA Male/Female, TNC Female/Female, TNC Male/Female |
---|
