Description

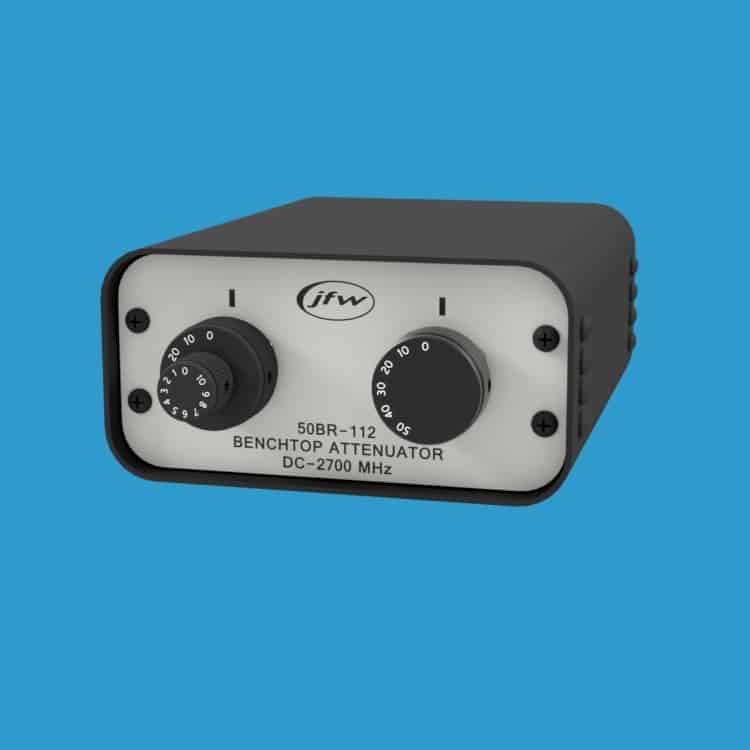

Model 50BR-112 is a 50 Ohm manual step attenuator in a benchtop enclosure. The attenuation range is 0 to 110dB by 1dB steps. It operates DC-2700 MHz and is rated for 2 Watts average of RF input power. This attenuator assembly is constructed with a dual knob rotary attenuator and a single knob rotary attenuator that are connected in series with each other. The small knob is 1dB step. The two larger knobs are 10dB step. With all three knobs set to their maximum setting, a total attenuation setting of 110dB can be achieved. It is available with 50 Ohm coaxial RF connectors: BNC, N, SMA or TNC female. The two RF connectors are located on the rear panel.
