Description

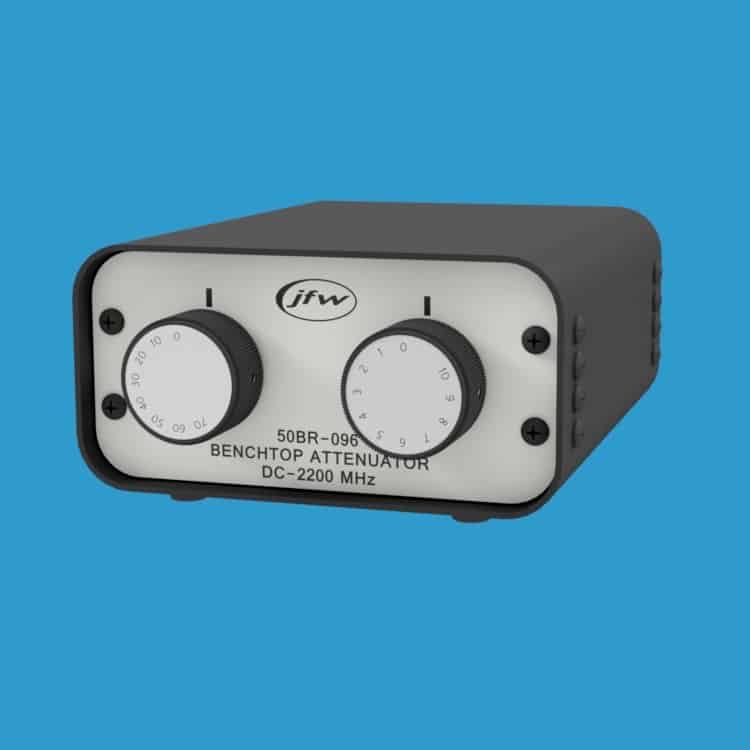

Model 50BR-096 is a 50 Ohm manual step attenuator in a benchtop enclosure. The attenuation range is 0 to 80dB by 1dB steps. It operates DC-2200 MHz and is rated for 2 Watts average of RF input power. There are two knobs on the front panel used to set the attenuation value. One knob is 1dB step. The other knob is 10dB step. It is available with 50 Ohm coaxial RF connectors: BNC, N, SMA or TNC female. The two RF connectors are located on the rear panel.
