Description

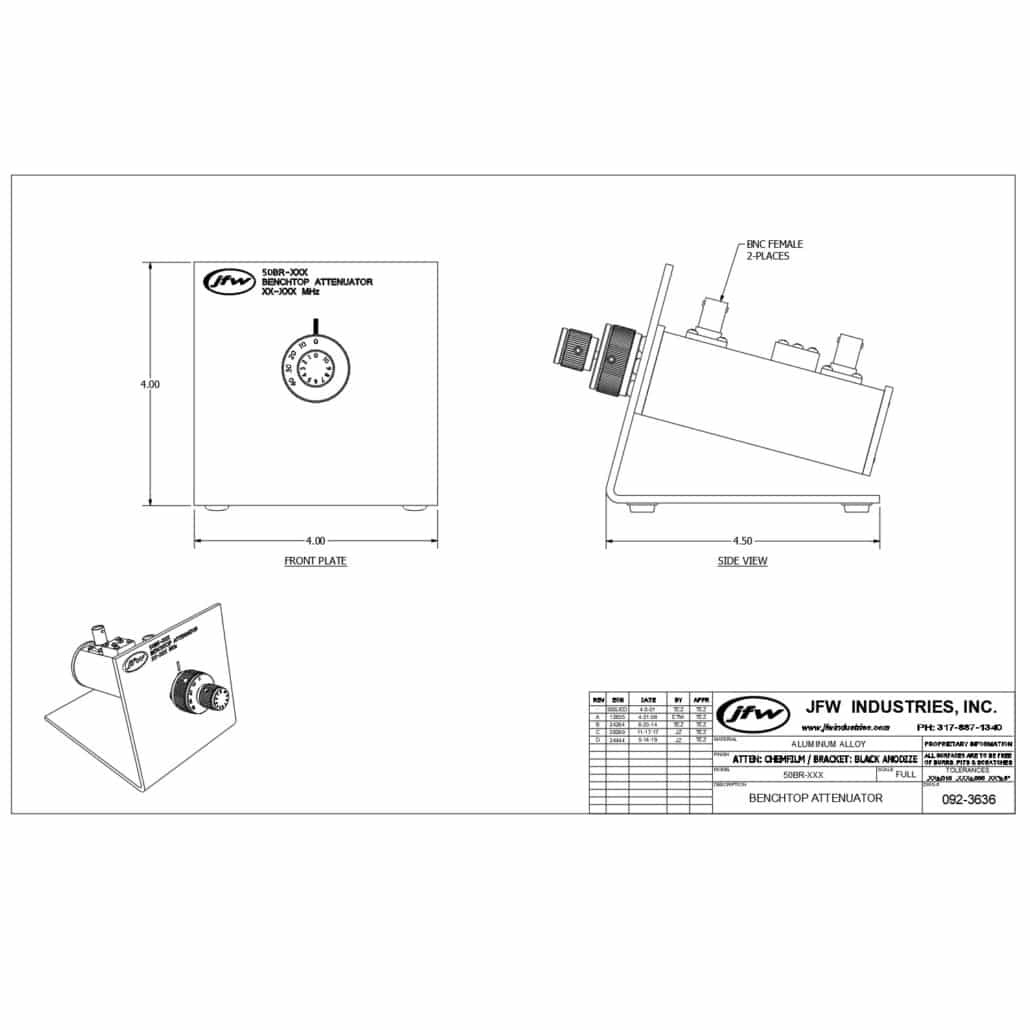

Model 50BR-052 is a 50 Ohm manual step attenuator mounted to an L-bracket for benchtop usage. It has an attenuation range of 0 to 50dB by 1dB steps. It operates DC-2500 MHz and is rated for 2 Watts average RF power. It is a dual rotary attenuator (i.e. two manual knobs). The small knob is 1dB step. The large knob is 10dB step. It is available with 50 Ohm coaxial RF connectors: BNC, N, SMA, or TNC female.
