Description

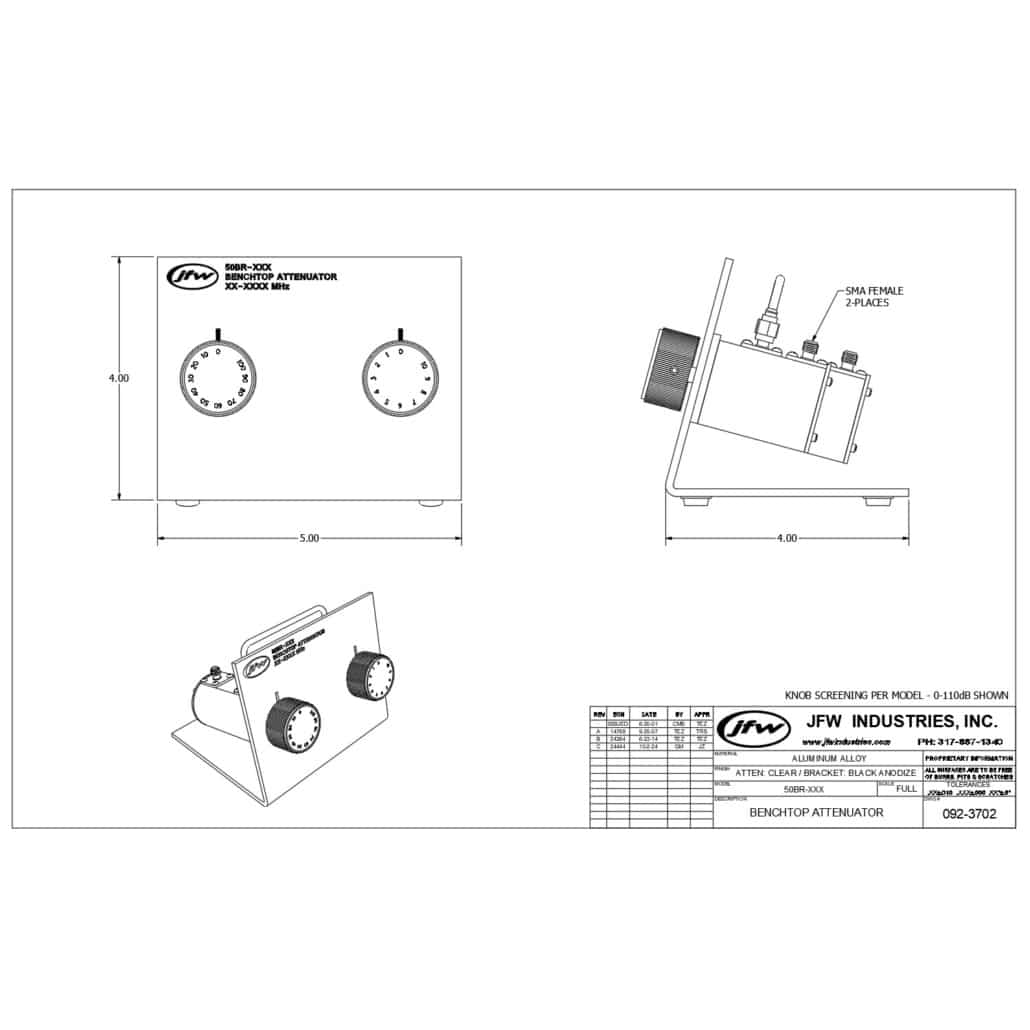

Model 50BR-009 is a 50 Ohm manual step attenuator mounted on a benchtop L-bracket. The attenuation range is 0 to 110dB by 1dB steps. It operates DC-1000 MHz and is rated for 2 Watts average of RF input power. There are two knobs on the front panel used to set the attenuation value. One knob is 1dB step. The other knob is 10dB step. It is available with 50 Ohm coaxial RF connectors: BNC, N or SMA female. The two RF connectors are located on the rear of the attenuator cases.
